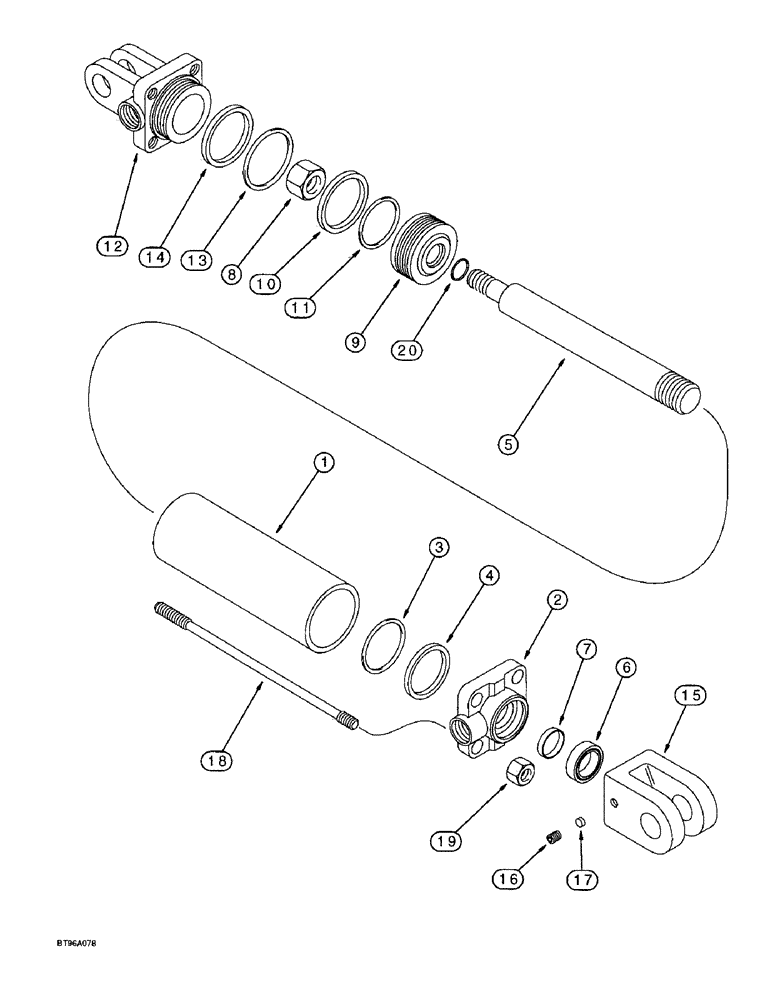

Запчасти Case IH 955 (8-122) - HYDRAULIC CYLINDER - 138623A1, FERTILIZER CART HINGE, 8 ROW WIDE & 12 ROW NARROW VERTICAL FOLD (08) - HYDRAULICS

138623A1

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke, fertilizer cart hinge

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order cylinder assembly)

1шт.

2

1272826C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 ID x 2-1/2 inch OD, gland

1шт.

Part of seal kit P/N 84919C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 84919C2

1шт.

5

118491A1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of seal kit P/N 84919C2

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 84919C2

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 ID x 2-1/4 inch OD, backup, piston seal

1шт.

Part of seal kit P/N 84919C2

1шт.

12

1272825C1

HEAD

- cylinder, two ports, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 ID x 2-1/2 inch OD, cylinder head

1шт.

Part of seal kit P/N 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal kit P/N 84919C2

1шт.

15

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

16

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

17

NSS

NOT SOLD SEPARAT

PAD - insert

1шт.

18

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

BOLT - cylinder tie

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 84919C2

1шт.

84919C2

GASKET KIT

KIT - seal, Includes: Refs. 3, 4, 6, 7, 10, 11, 13, 14 and 20

1шт.
