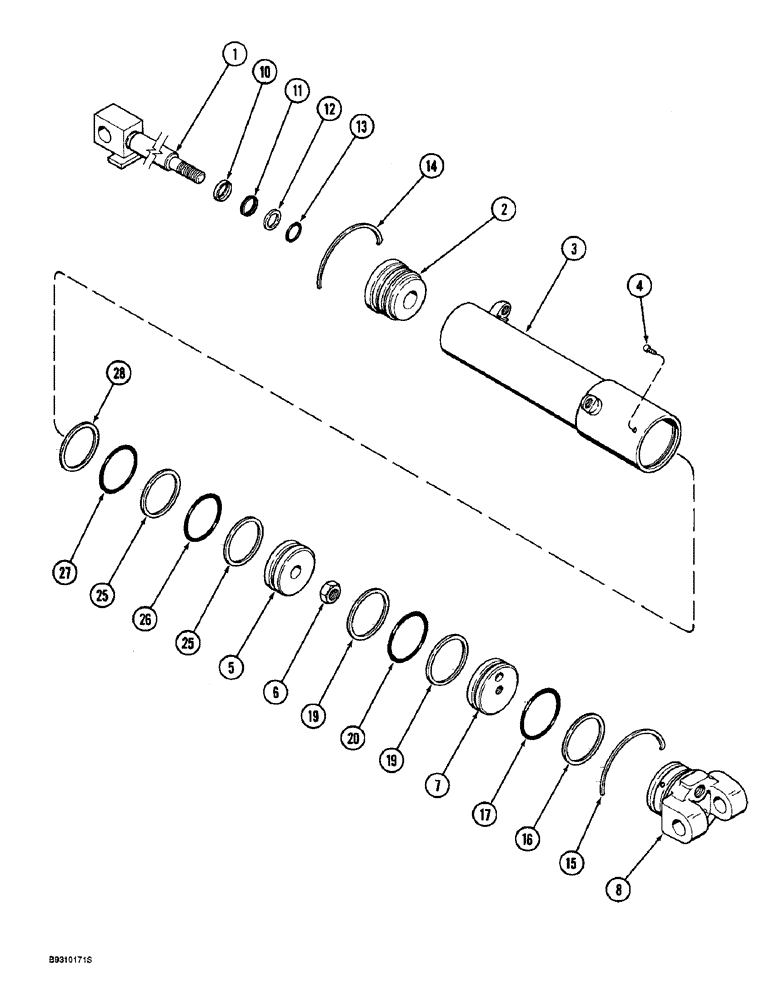

Запчасти Case IH 955 (8-120) - WING FRAME LIFT HYDRAULIC CYLINDER, 8 ROW WIDE & 12 ROW NARROW VERTICAL FOLD (08) - HYDRAULICS

113978C93

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 305 mm (12 inch) stroke, wing frame lift, two stage

2шт.

1

113984C2

ROD

- piston

1шт.

2

62899C1

HEAD

- cylinder, front

1шт.

3

113981C1

SLEEVE

TUBE - cylinder

1шт.

4

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

5

547724R1

PISTON

- cylinder, inner, at rod

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

7

113986C1

PISTON

- cylinder, outer

1шт.

8

63908C2

HEAD

- cylinder, rear

1шт.

63498C91

SEAL PACKAGE

KIT - seal, repair, no longer available, order individual components

1шт.

10

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

RETAINER - wiper

1шт.

11

386421R1

WASHER

WIPER - piston rod

1шт.

12

546279R1

WASHER

RING - backup

1шт.

13

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

not included in 63498C91 seal kit -218, 90 Duro, 1.234" ID x .139" Thk

1шт.

14

140600C1

RETAINING WIRE

WIRE - bulk, retaining, 319 mm (12-1/2 inch) long, front head, cut to 10-13/16 inch length

1шт.

15

140600C1

RETAINING WIRE

WIRE - bulk, retaining, 319 mm (12-1/2 inch) long, rear head, cut to 12 inch length

1шт.

16

113998C1

WASHER,98.679mm OD x 1.245mm Width

RING - backup

1шт.

17

238-6239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 6, 90 Duro

1шт.

19

113987C1

BACK-UP RING,98.679mm OD x 1.778mm Width

RING - backup

2шт.

20

238-6341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 6, 90 Duro

- 3-1/2 ID x 3/16 inch wide

1шт.

25

375936R1

BACK-UP RING

RING - backup

2шт.

26

238-6338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

1шт.

27

238-6236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 6, 90 Duro

- 3-1/4 ID x 1/8 inch wide, not included in 63498C91 seal kit

1шт.

28

404015R1

BACK-UP RING

- backup

1шт.
