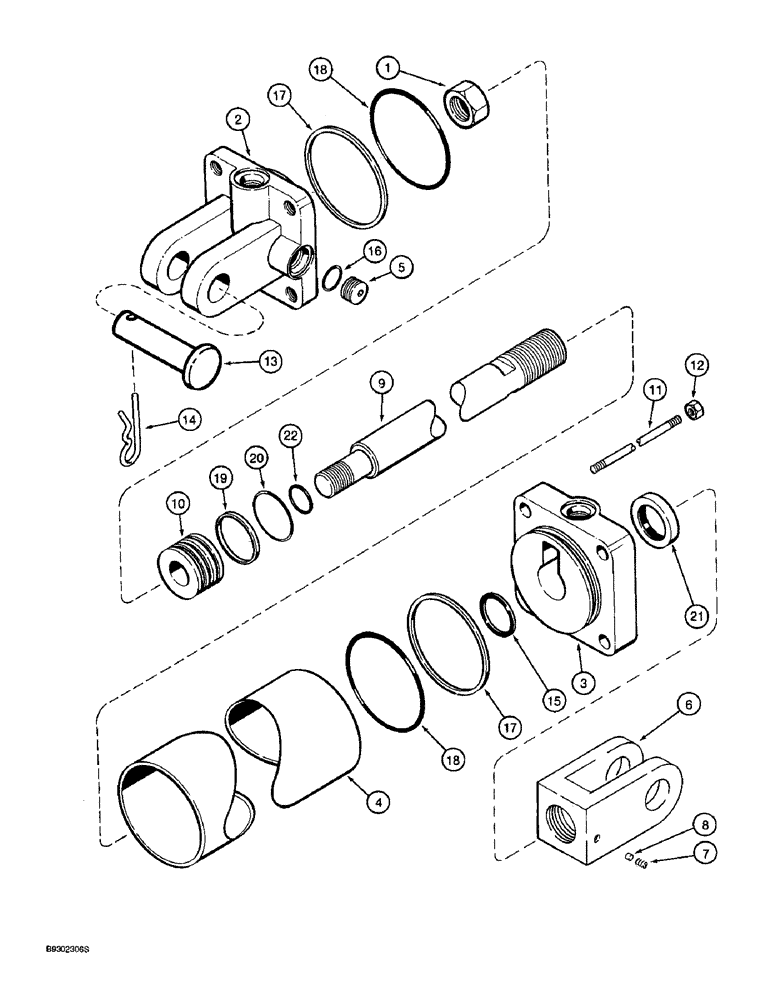

Запчасти Case IH 955 (8-118) - ASSIST WHEEL CYLINDER, 8 ROW WIDE & 12 ROW NARROW - VERTICAL FOLD (08) - HYDRAULICS

92916C91

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, assist wheel, replaced by 1272147C91 cylinder, parts list page 8-129

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

1272825C1

HEAD

- cylinder, two ports, rear

1шт.

3

1272826C1

HEAD

GLAND - cylinder, front

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order cylinder assembly)

1шт.

5

214389

PLUG,3/4" - 16 ORB

1шт.

6

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

9

145231C1

PISTON ROD

ROD - piston

1шт.

10

145422C2

PISTON

- cylinder

1шт.

11

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

13

1266753C1

PIN,25.4mm OD x 96.83mm L

- pivot

2шт.

Parts not used in this application. See Figure 8-76, Ref. 12 and 13, for correct mounting parts.

1шт.

14

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

4шт.

Parts not used in this application. See Figure 8-76, Ref. 12 and 13, for correct mounting parts.

1шт.

84919C2

GASKET KIT

KIT - seal, repair

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-1/4 inch ID

2шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston, 3 inch ID

1шт.

21

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.
