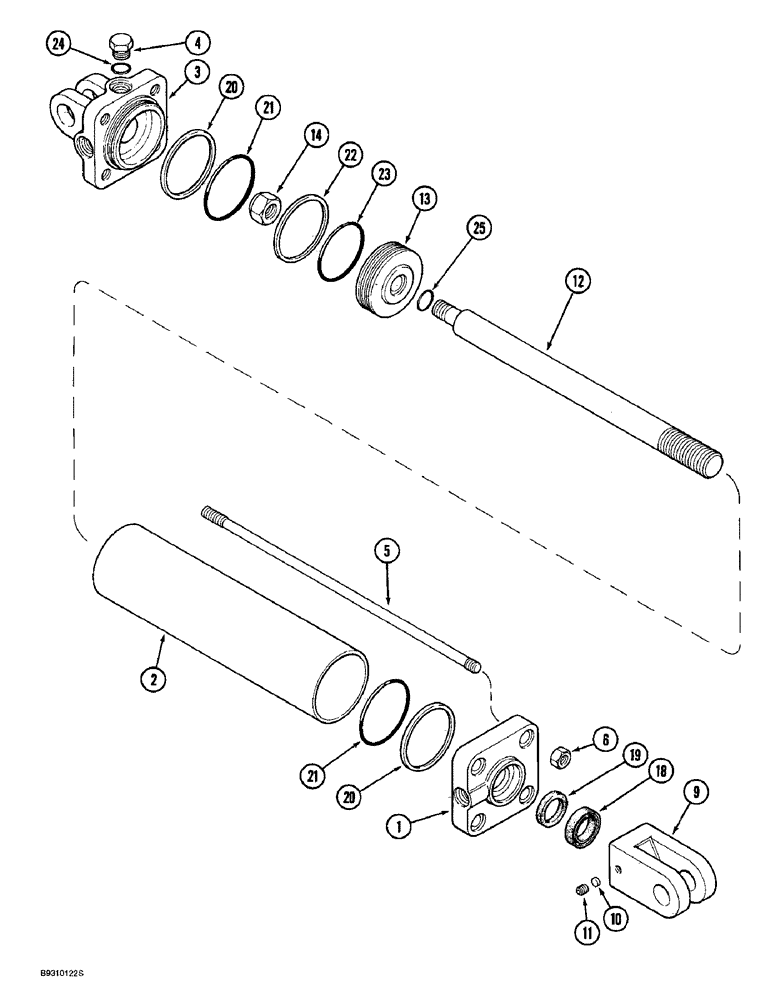

Запчасти Case IH 955 (8-116) - HYDRAULIC CYLINDER - 1282329C91, ENDWISE TRANSPORT WHEEL - 8 ROW NARROW RIGID WING FRAME FOLD 12 ROW (08) - HYDRAULICS

1282329C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke, wheel, endwise transport

1шт.

1

1282337C1

GLAND

- cylinder, front

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

3

1282336C1

HEAD

- cylinder, rear

1шт.

4

214389

PLUG,3/4" - 16 ORB

1шт.

5

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT - tie, cylinder retaining

4шт.

6

25-1010

NUT,5/8"-11, G5

4шт.

9

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

11

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

12

1263346C1

ROD ASSY.

ROD - piston

1шт.

13

149930C2

PISTON

- cylinder

1шт.

14

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - U-cup, rod

1шт.

Part of seal kit P/N 79979C3

1шт.

19

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of seal kit P/N 79979C3

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of seal kit P/N 79979C3

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

2шт.

Part of seal kit P/N 79979C3

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 79979C3

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit P/N 79979C3

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 79979C3

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 79979C3

1шт.

79979C3

SEAL KIT

KIT - seal, Includes: Refs. 18 through 25

1шт.
