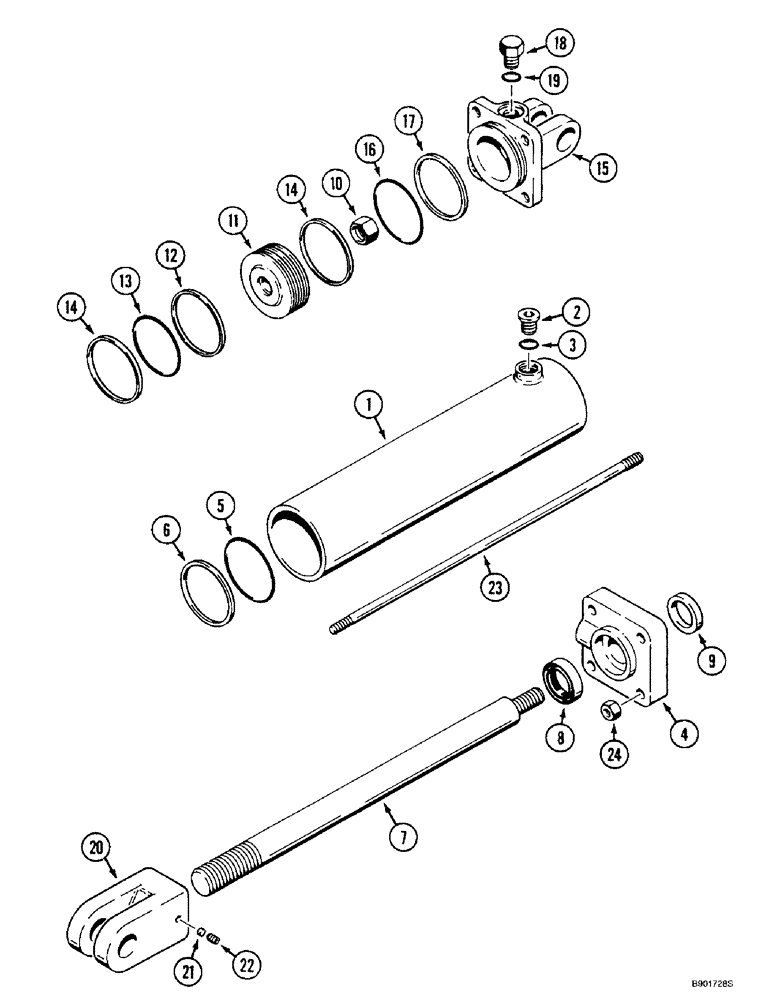

Запчасти Case IH 955 (8-114) - HYD. CYL. - 1282326C92, DRIVE/GAUGE WHEEL LIFT& CART WHEEL LIFT 12 ROW NARROW PARALLEL FRONT FOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1282326C92
HYDRAULIC CYLINDER
CYLINDER ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke
4шт.
1
1978385C1
HYD TUBE
TUBE - cylinder
1шт.
2
71100209
PLUG,Hex Soc, 3/4"-16 ORB
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - 41/64 ID x 3/32 inch wide, plug
1шт.
Part of seal kit P/N 79978C2
1шт.
4
1282335C1
HEAD
GLAND - cylinder
1шт.
5
NSS
NOT SOLD SEPARAT
O-RING - 3-3/4 ID x 4 inch OD, gland
1шт.
Part of seal kit P/N 79978C2
1шт.
6
NSS
NOT SOLD SEPARAT
RING - backup, gland O-ring
1шт.
Part of seal kit P/N 79978C2
1шт.
7
1282397C1
PISTON ROD
ROD - piston
1шт.
8
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of seal kit P/N 79978C2
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL - piston rod
1шт.
Part of seal kit P/N 79978C2
1шт.
10
232-46314
LOCK NUT,7/8"-14, GC
NUT, LOCK, 7/8"-14, GC
1шт.
11
145422C2
PISTON
- cylinder
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
Part of seal kit P/N 79978C2
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - 3-1/2 ID x 3-11/16 inch OD, backup, piston seal
1шт.
Part of seal kit P/N 79978C2
1шт.
14
NSS
NOT SOLD SEPARAT
RING - wear, piston
2шт.
Part of seal kit P/N 79978C2
1шт.
15
1282334C1
HEAD
- cylinder, closed end
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - 3-3/4 ID x 4 inch OD, cylinder head
1шт.
Part of seal kit P/N 79978C2
1шт.
17
NSS
NOT SOLD SEPARAT
RING - backup, cylinder head O-ring
1шт.
Part of seal kit P/N 79978C2
1шт.
18
214389
PLUG,3/4" - 16 ORB
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING - 41/64 ID x 3/32 inch wide
1шт.
Part of seal kit P/N 79978C2
1шт.
20
145240C1
CLEVIS,1 -1/2" - 12
- rod
1шт.
21
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert
1шт.
22
483-1386
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point
1шт.
23
1282287C1
TIE-ROD,1/2" - 13 x 28.656"
BOLT - cylinder tie
4шт.
24
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
79978C2
SEAL KIT
KIT - seal, Includes: Refs. 3, 5, 6, 8, 9, 12, 13, 14, 16, 17 and 19
1шт.
Выбрано товаров: 37
