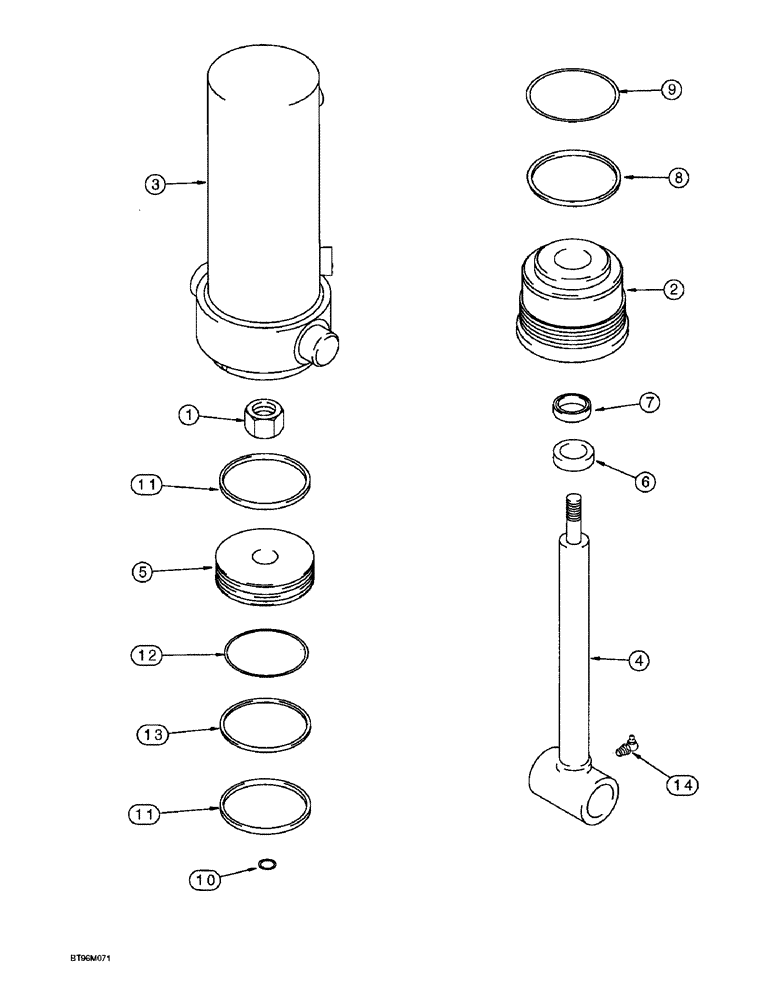

Запчасти Case IH 955 (8-112) - HYDRAULIC CYLINDER - 233762A1, 4-1/2 ID X 7-1/4 INCH STROKE (08) - HYDRAULICS

233762A1

CYLINDER

ASSEMBLY - 114 (4-1/2) ID x 184 mm (7-1/4 inch) stroke, carrying wheel

1шт.

1

232-46316

NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

1шт.

2

243086A1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

4

243077A1

SHAFT

ROD - piston

1шт.

5

1954189C1

JACK PISTON

PISTON - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 243126A1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of seal repair kit P/N 243126A1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of seal repair kit P/N 243126A1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of seal repair kit P/N 243126A1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal repair kit P/N 243126A1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of seal repair kit P/N 243126A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal repair kit P/N 243126A1

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal repair kit P/N 243126A1

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

243126A1

SEAL KIT

- seal, repair, Includes: Refs. 6 through 13

1шт.
