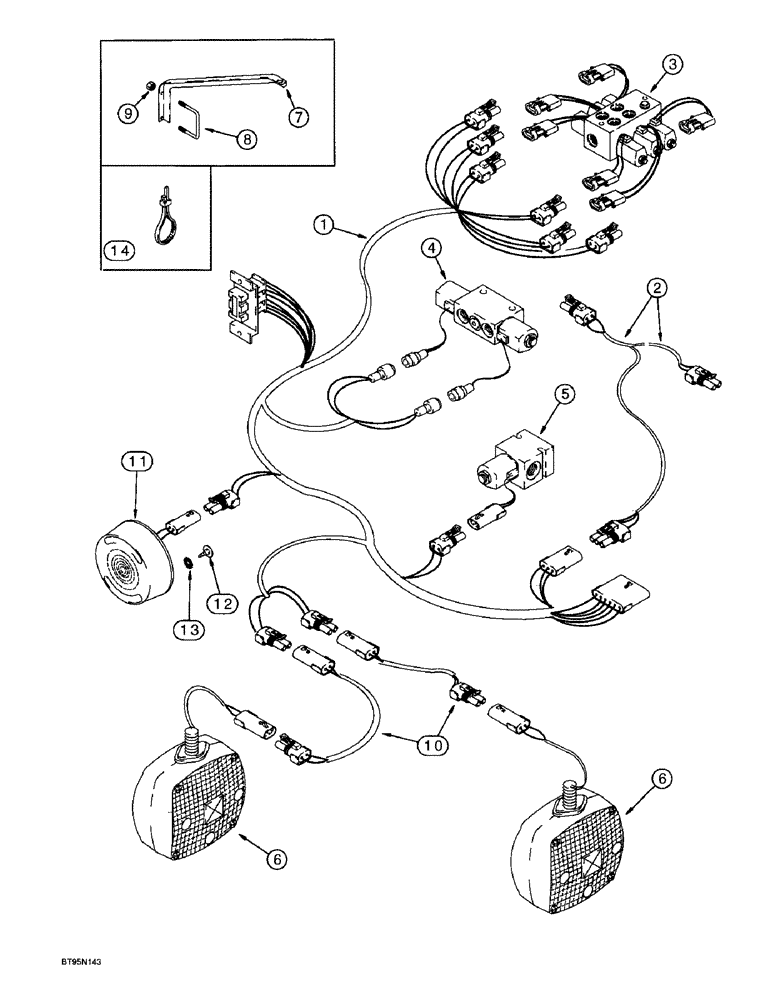

Запчасти Case IH 955 (4-10) - ELECTRICAL SYSTEM, 12 ROW NARROW, PARALLEL FRONT FOLD (04) - ELECTRICAL SYSTEMS

1

195911A1

HARNESS

- main, planter

1шт.

2

199612A1

HARNESS

- electric clutch

1шт.

3

93188C1

VALVE

ASSEMBLY - solenoid, wheel lift, parts list page 8-57

1шт.

4

149988C92

VALVE

ASSEMBLY - control, row marker, parts list page 8-137

1шт.

5

1954190C1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, frame fold, parts list page 8-85

1шт.

6

91913C91

LIGHT

LAMP ASSEMBLY - turn signal/warning, parts list page 4-13

2шт.

7

194878A1

ANGLE

BRACKET - mounting, warning lamp, at module support

1шт.

7a

194879A1

ANGLE

BRACKET - mounting, warning lamp, right-hand, at module support (not shown)

1шт.

8

195077A1

U-BOLT,1/2" - 13 x 4 1/8"

- 1/2 inch NC, 4 x 7 inch, Serial Range: bracket-support

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

92097C1

HARNESS

- lamp, warning lamp extension

2шт.

11

91986C91

LIGHT

LAMP ASSEMBLY - tail, parts list page 4-13

1шт.

12

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

13

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
