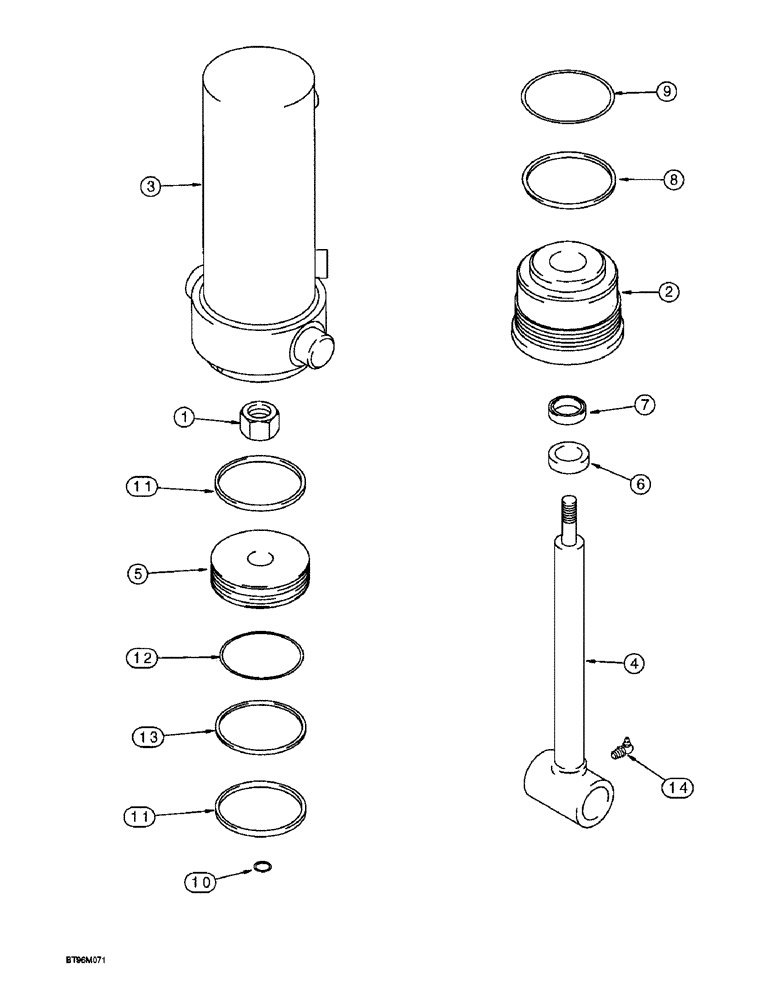

Запчасти Case IH 955 (8-110) - HYDRAULIC CYLINDER - 233761A2, 4-1/4 ID X 7-1/4 INCH STROKE (GLAND TYPE) DRIVE & CARRYING WHEEL (08) - HYDRAULICS

233761A2

CYLINDER

ASSEMBLY - 108 (4-1/4) ID x 184 mm (7-1/4 inch) stroke, drive or carrying wheel

1шт.

1

232-46316

NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

1шт.

2

243080A1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

4

243077A1

SHAFT

ROD - piston

1шт.

5

92696C1

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 118510A1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of seal repair kit P/N 118510A1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of seal repair kit P/N 118510A1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of seal repair kit P/N 118510A1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal repair kit P/N 118510A1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of seal repair kit P/N 118510A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal repair kit P/N 118510A1

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal repair kit P/N 118510A1

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

118510A1

SEAL KIT

- seal, repair, Includes: Refs. 6 through 13

1шт.
