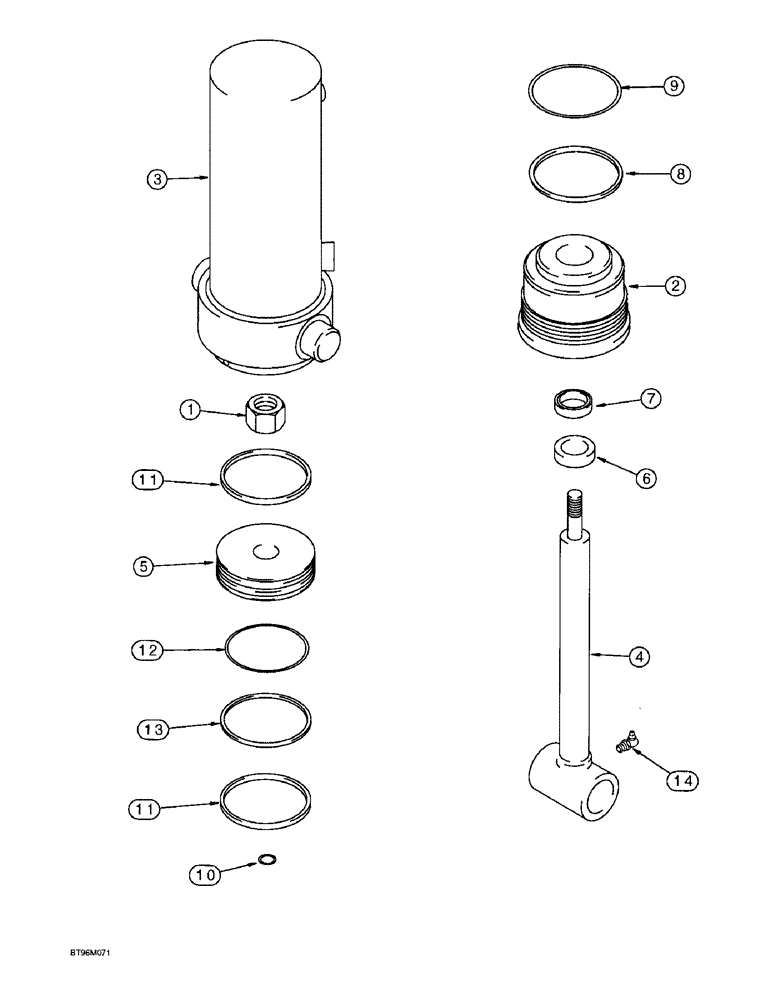

Запчасти Case IH 955 (8-107C) - HYDRAULIC CYLINDER - 298978A1, 3-1/4 ID X 7-1/4 INCH STROKE (GLAND TYPE) CARRYING WHEEL PLANTERS (08) - HYDRAULICS

298978A1

CYLINDER

ASSEMBLY - 83 (3-1/4) ID x 184 mm (7-1/4 inch) stroke, carrying wheel

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

301363A1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

4

243068A1

SHAFT

ROD - cylinder

1шт.

5

92519C1

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal repair kit P/N 299190A1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of seal repair kit P/N 299190A1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of seal repair kit P/N 299190A1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of seal repair kit P/N 299190A1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal repair kit P/N 299190A1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of seal repair kit P/N 299190A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal repair kit P/N 299190A1

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal repair kit P/N 299190A1

1шт.

14

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

299190A1

SEAL KIT

- seal, repair, Includes: Refs. 6 through 13

1шт.
