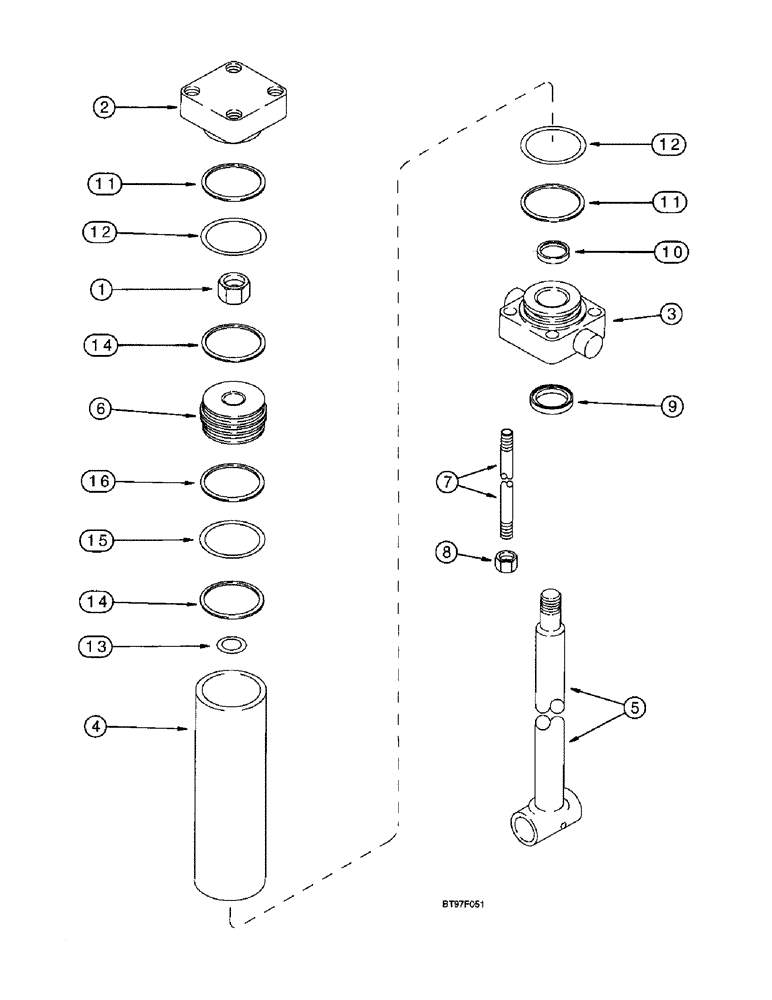

Запчасти Case IH 955 (8-107A) - HYDRAULIC CYLINDER - 248547A1, 3-1/4 ID X 7-1/4 INCH STROKE (TIE ROD TYPE) CARRYING WHEEL (08) - HYDRAULICS

248547A1

CYLINDER

ASSEMBLY - 83 (3-1/4) ID x 184 mm (7-1/4 inch) stroke, carrying wheel

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

93340C1

BOTTOM

HEAD - cylinder, rear

1шт.

3

93342C1

HEAD

- cylinder, front

1шт.

4

250931A1

CASE

TUBE - cylinder

1шт.

5

250932A1

SHAFT

ROD - cylinder

1шт.

6

92519C1

PISTON

- cylinder

1шт.

7

250942A1

BOLT

STUD - tie, cylinder

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL - U-cup, rod

1шт.

Part of seal repair kit P/N 80116C2

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of seal repair kit P/N 80116C2

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of seal repair kit P/N 80116C2

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-1/4 inch ID

2шт.

Part of seal repair kit P/N 80116C2

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal repair kit P/N 80116C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of seal repair kit P/N 80116C2

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston, 3 inch ID

1шт.

Part of seal repair kit P/N 80116C2

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal repair kit P/N 80116C2

1шт.

80116C2

GASKET KIT

KIT - seal, repair, Includes: Refs. 9 through 16, and (3) O-rings not used on this cylinder

1шт.
