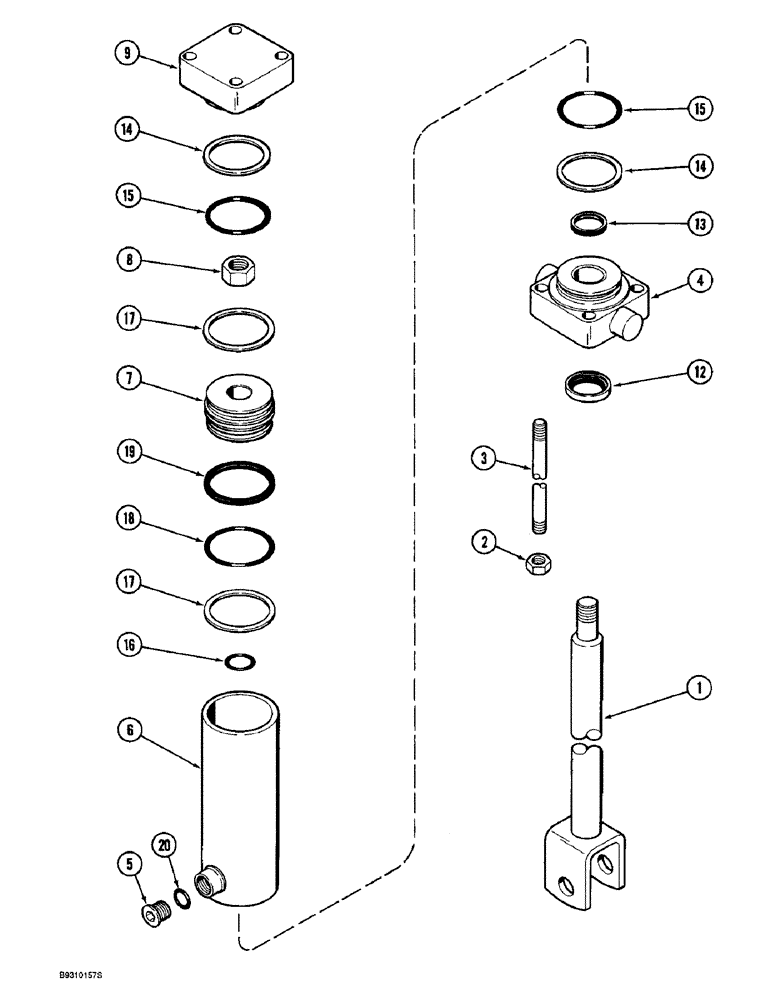

Запчасти Case IH 955 (8-098) - DRIVE/CARRYING WHEEL SLAVE HYDRAULIC CYLINDER, 4, 6 & 8 ROW NARROW RIGID 4&6 ROW WIDE RIGID (08) - HYDRAULICS

1286471C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke

1шт.

1

93341C1

SHAFT ASSY.

ROD - cylinder

1шт.

2

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

3

93343C1

SHAFT

STUD - tie, cylinder

4шт.

4

93345C1

HEAD

- cylinder, front

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

7

93320C1

PISTON

- cylinder

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

9

93344C1

BOTTOM

HEAD - cylinder, rear

1шт.

93347C1

SEAL KIT

- seal repair (See note)

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

15

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

17

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
