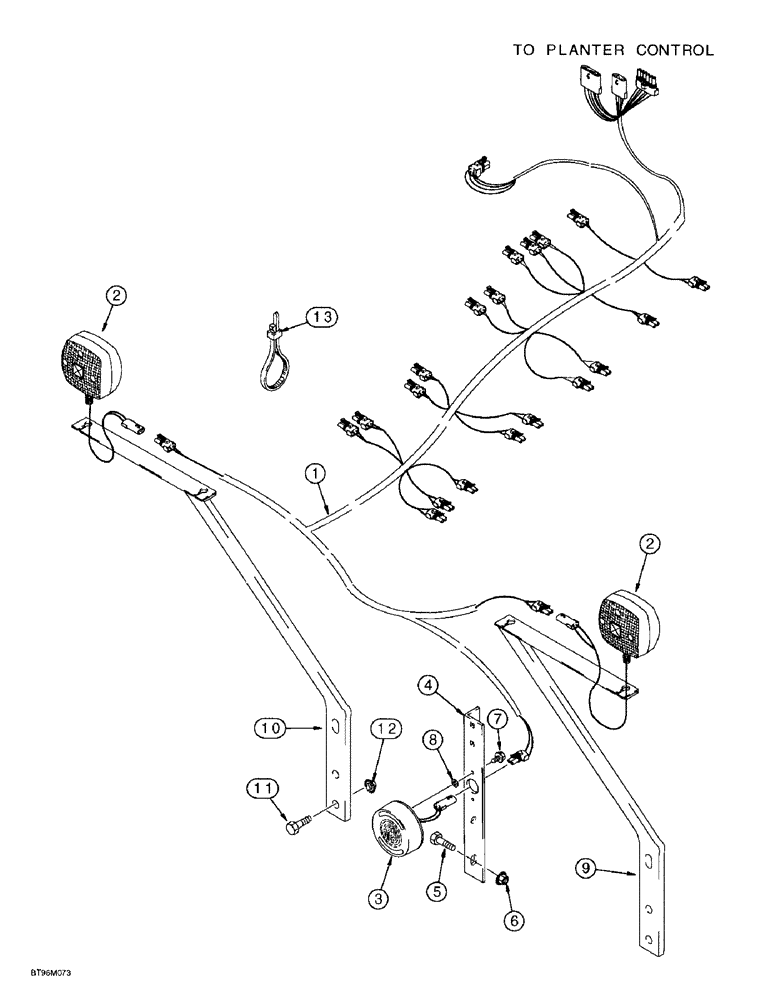

Запчасти Case IH 955 (4-08) - LIGHTING SYSTEM, 12/23 SOLID ROW CROP, FRONT FOLD (04) - ELECTRICAL SYSTEMS

1

243199A1

HARNESS

- main, see Figure 4-16 for connection to planter control assembly

1шт.

For safety light harness see FZG21338. bj 4/7/99

1шт.

2

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal (Parts list Figure 4-12)

2шт.

3

91986C91

LIGHT

LAMP ASSEMBLY - tail (Parts list Figure 4-12)

1шт.

4

116338A1

ANGLE

BRACKET - tail lamp and SMV mounting

1шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

7

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex washer head, No. 10-16 x 5/8 inch

2шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

119160A3

BRACKET

- lamp support, left-hand, warning lamp

1шт.

10

119159A3

BRACKET

- lamp support, right-hand, warning lamp

1шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, nylon

10шт.
