Запчасти Case IH 955 (9C-32) - SEED DELIVERY TUBE (09) - CHASSIS/ATTACHMENTS

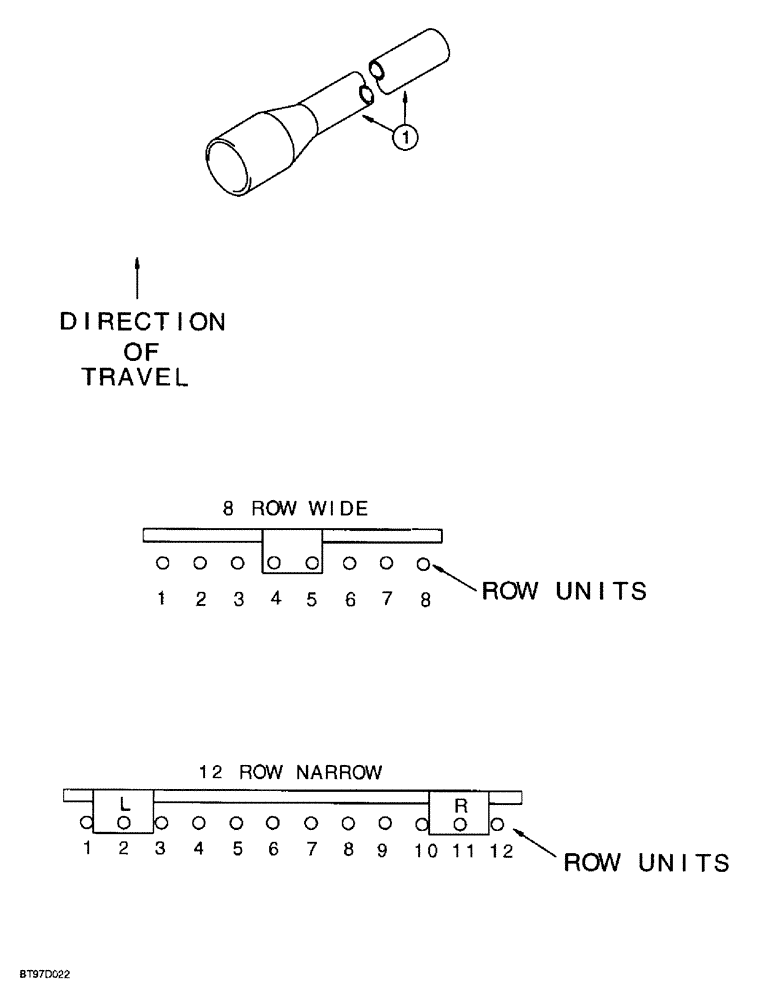

Схема запчастей Case IH 955 - (9C-32) - SEED DELIVERY TUBE (09) - CHASSIS/ATTACHMENTS
1

Артикул

Название

Примечание

Количество

1

58238C2

TUBE

- seed delivery, flared end, soft, 58 inch long

1шт.

1

130979A2

TUBE,17.45 - 28.5 mm OD, 4950 mm Length

- seed delivery, flared end, rigid, 195 inch long

1шт.

1973256C1

TUBE

- seed delivery, 162 inch, No. 1, order 130979A2, 8 row wide - vertical fold

1шт.

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 2, order 130979A2, 8 row wide - vertical fold

1шт.

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 3, order 130979A2, 8 row wide - vertical fold

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 4, order 58238C2, 8 row wide - vertical fold

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 5, order 58238C2, 8 row wide - vertical fold

1шт.

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 6, order 130979A2, 8 row wide - vertical fold

1шт.

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 118 inch, No. 7, order 130979A2, 8 row wide - vertical fold

1шт.

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 8, order 130979A2, 8 row wide - vertical fold

1шт.

1973256C1

TUBE

- seed delivery, 162 inch, No. 1, order 130979A2, 12 row narrow - vertical fold

1шт.

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 2, order 130979A2, 12 row narrow - vertical fold

1шт.

1279792C1

TUBE,17.45 - 28.5 mm OD, 2560 mm Length

- seed delivery, 101 inch, No. 3, order 130979A2, 12 row narrow - vertical fold

1шт.

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 4, order 130979A2, 12 row narrow - vertical fold

1шт.

1254367C1

TUBE - seed delivery, 47 inch, No. 5, order 58238C2, 12 row narrow - vertical fold

1шт.

1337518C1

TUBE,17.45 - 28.5 mm OD, 1010 mm Length

- seed delivery, 40 inch, No. 6, order 58238C2, 12 row narrow - vertical fold

1шт.

1254367C1

TUBE - seed delivery, 47 inch, No. 7, order 58238C2, 12 row narrow - vertical fold

1шт.

1337518C1

TUBE,17.45 - 28.5 mm OD, 1010 mm Length

- seed delivery, 40 inch, No. 8, order 58238C2, 12 row narrow - vertical fold

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 9, order 58238C2, 12 row narrow - vertical fold

1шт.

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 10, order 130979A2, 12 row narrow - vertical fold

1шт.

1337535C1

TUBE,17.45 - 28.5 mm OD, 3165 mm Length

- seed delivery, 125 inch, No. 11, order 130979A2, 12 row narrow - vertical fold

1шт.

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 12, order 130979A2, 12 row narrow - vertical fold

1шт.

Выбрано товаров: 22
