Запчасти Case IH 955 (9C-31A) - SEED DELIVERY TUBE, 12 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS

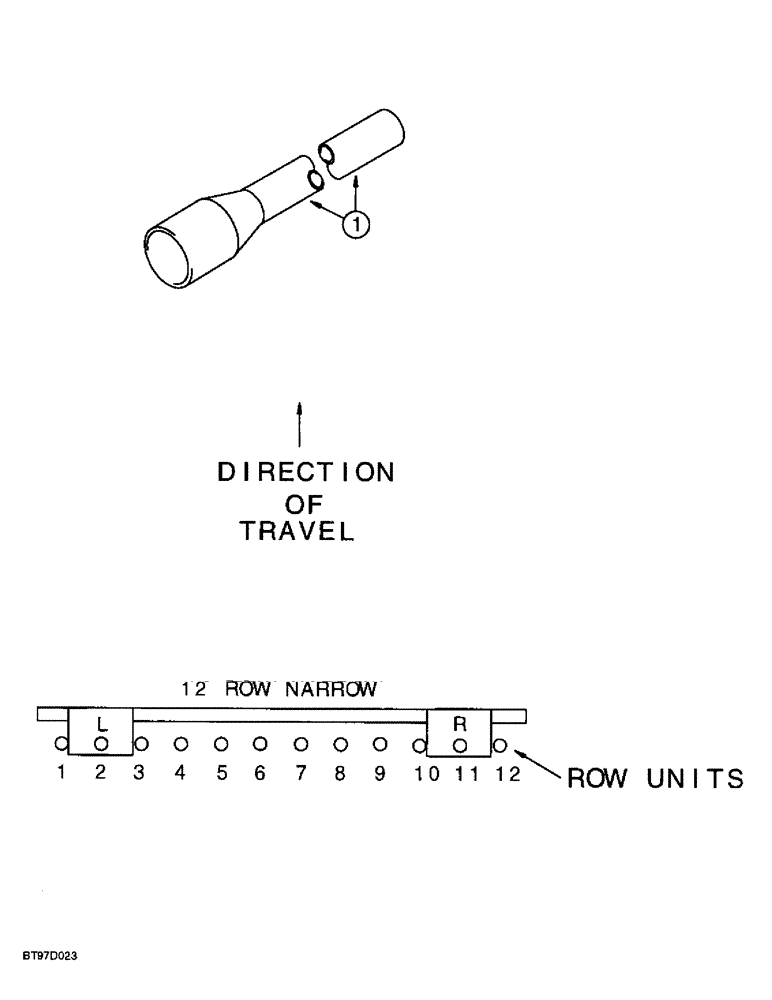

Схема запчастей Case IH 955 - (9C-31A) - SEED DELIVERY TUBE, 12 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS
1

Артикул

Название

Примечание

Количество

1

58238C2

TUBE

- seed delivery, flared end, soft, 58 inch long

1шт.

1

130979A2

TUBE,17.45 - 28.5 mm OD, 4950 mm Length

- seed delivery, flared end, rigid, 195 inch long

1шт.

1279792C1

TUBE,17.45 - 28.5 mm OD, 2560 mm Length

- seed delivery, 101 inch, No. 1, order 130979A2

1шт.

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 2, order 130979A2

1шт.

1254367C1

TUBE - seed delivery, 47 inch, No. 3, order 58238C2

1шт.

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed deiivery, 42 inch, No. 4, order 58238C2

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 5, order 130979A2

1шт.

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 6, order 130979A2

1шт.

1279792C1

TUBE,17.45 - 28.5 mm OD, 2560 mm Length

- seed delivery, 101 inch, No. 7, order 130979A2

1шт.

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 8, order 130979A2

1шт.

1254367C1

TUBE - seed delivery, 47 inch, No. 9, order 58238C2

1шт.

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed deiivery, 42 inch, No. 10, order 58238C2

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 11, order 130979A2

1шт.

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 12, order 130979A2

1шт.

Выбрано товаров: 14
