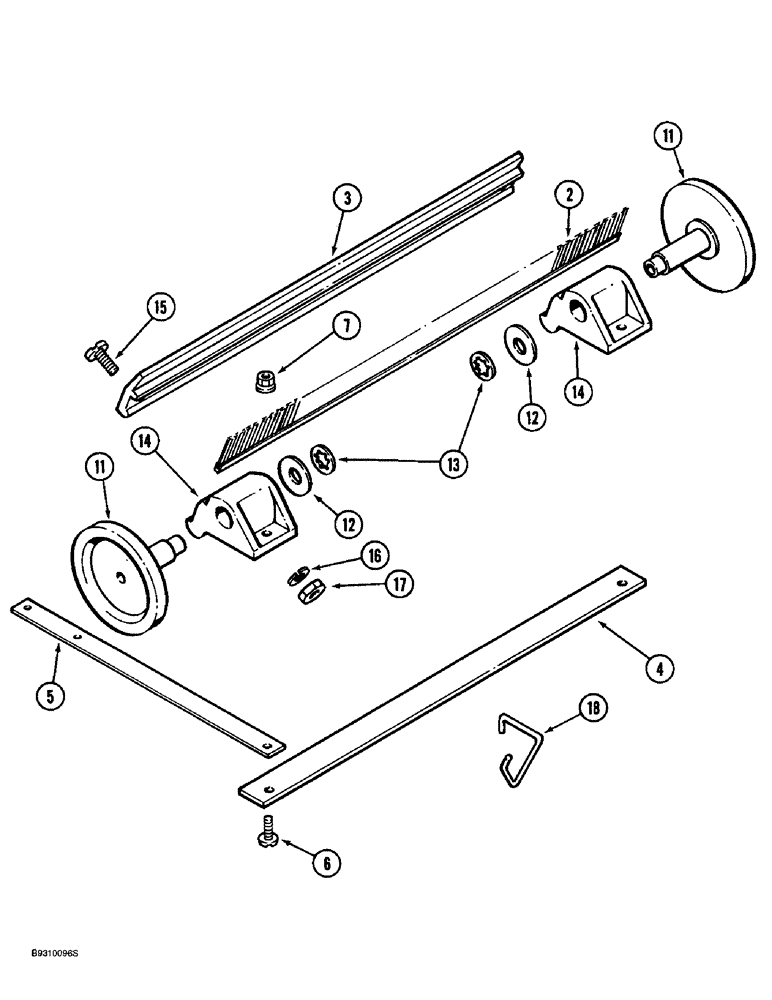

Запчасти Case IH 955 (9C-26) - SEED MODULE CUTOFF BRUSH (09) - CHASSIS/ATTACHMENTS

145156C91

BRUSH ASSY.

BRUSH ASSEMBLY - cutoff

1шт.

2

145116C1

BRUSH

- cutoff

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - clamping (Order 145156C91)

1шт.

4

145118C1

STRIP

BRACKET - retaining

1шт.

5

546389R1

SPRING

- cutoff brush (Order 145156C91) ( replaced NSS )

2шт.

6

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

1шт.

7

545558R1

LOCK NUT

- hex, No. 8 NC

1шт.

11

546393R1

ROLL

ER - gauging (Order 145156C91) ( replaced NSS )

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

13

100-1537

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

2шт.

14

NSS

NOT SOLD SEPARAT

BRACKET - gauging roller (Order 145156C91)

2шт.

15

470-10812

SCREW,Pan HD, #8 - 32 x 3/4"

- machine, pan head slotted, No. 8 NC x 3/4 inch

2шт.

16

492-11008

LOCK WASHER,#8

Washer, Lock, #8

4шт.

17

225-14108

NUT,#8-32

- hex, No. 8 NC

4шт.

18

149310C2

CLIP

- lock

1шт.
