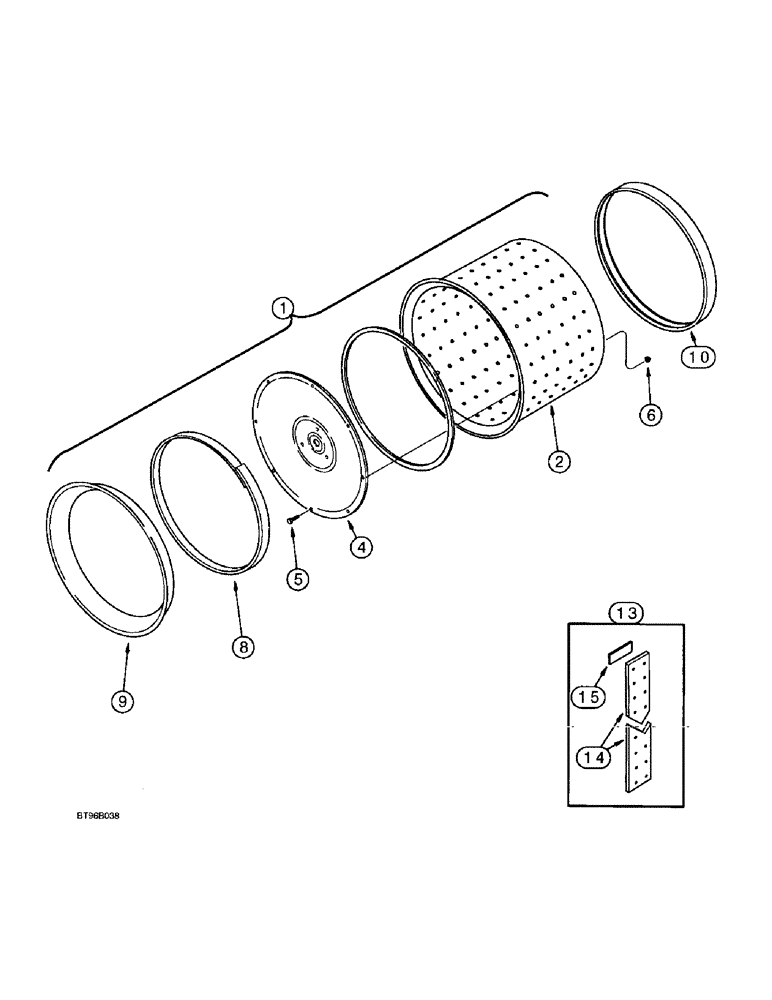

Запчасти Case IH 955 (9C-20) - SEED DRUM (09) - CHASSIS/ATTACHMENTS

1

1546934C3

DRUM

ASSEMBLY - seed, corn, 24 hole

1шт.

1

548777R95

DRUM

ASSEMBLY - seed, corn, 24 hole

1шт.

1

549966R95

DRUM

ASSEMBLY - seed, popcorn, sunflower, 24 hole

1шт.

1

149354C92

DRUM

ASSEMBLY - seed, sunflower, 24 hole

1шт.

1

1546935C3

DRUM

ASSEMBLY - seed, corn, 36 hole

1шт.

1

60270C95

DRUM

ASSEMBLY - seed, corn, 36 hole

1шт.

1

549964R93

DRUM

ASSEMBLY - seed, beet, 36 hole

1шт.

1

58434C93

DRUM

ASSEMBLY - seed, raw beet, 36 hole

1шт.

1

61144C95

DRUM

ASSEMBLY - seed, popcorn, sunflower, 36 hole

1шт.

1

63814C93

DRUM

ASSEMBLY - seed, beet, 72 hole

1шт.

1

548778R93

DRUM

ASSEMBLY - seed, milo, sorghum, 72 hole

1шт.

1

549968R93

DRUM

ASSEMBLY - seed, beans, 72 hole

1шт.

1

1546937C1

DRUM

ASSEMBLY - seed, edible bean, 96 hole

1шт.

1

549970R93

DRUM

ASSEMBLY - seed, cotton, 96 hole

1шт.

1

548779R93

DRUM

ASSEMBLY - seed, soybean, 144 hole

1шт.

1

60649C93

DRUM

ASSEMBLY - seed, cotton, soybean, 144 hole

1шт.

1

1546936C1

DRUM

ASSEMBLY - seed, small seed, 144 hole

1шт.

1

58436C93

DRUM

ASSEMBLY - seed, sorghum, 144 hole

1шт.

1

76810C92

DRUM

ASSEMBLY - seed, soybean, 240 hole

1шт.

2

NSS

NOT SOLD SEPARAT

DRUM - seed (Order drum assembly)

1шт.

3

57555C1

SEALING STRIP

- drum, 1613 mm (63-1/2 inch) long, cut from 57554C1 bulk seal, see below

1шт.

4

145113C1

CAP

COVER - end, drum

1шт.

5

442-11010

SCREW,Cross Oval Hd, #10-24 x 5/8"

- machine, oval Phillips, No. 10 NC x 5/8 inch

8шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

8

60303C5

RING, SNAP

RING - seal retaining

1шт.

REF #8, P/N 60303C5. IF DLR. NEEDS SEAL RING TO BE 1/8" SHORTER, HE CAN USE P/N 126231A1. 5/22/96 BJR

1шт.

9

100589C3

SEAL

- drum

1шт.

10

57669C4

BELT,38.10 mm W x 1133.00 mm L

Seed drum 38.10 mm W x 1133.00 mm L

1шт.

13

63280C1

PACKAGE

KIT - cushion belt, seed drum (See note A)

1шт.

14

NSS

NOT SOLD SEPARAT

BELT - cushioning, drum

1шт.

15

NSS

NOT SOLD SEPARAT

FASTENER - belt

1шт.

57554C1

SEAL

- foam, 200 foot roll

1шт.
