Запчасти Case IH 955 (9C-18) - SEED DRUM DRIVE (09) - CHASSIS/ATTACHMENTS

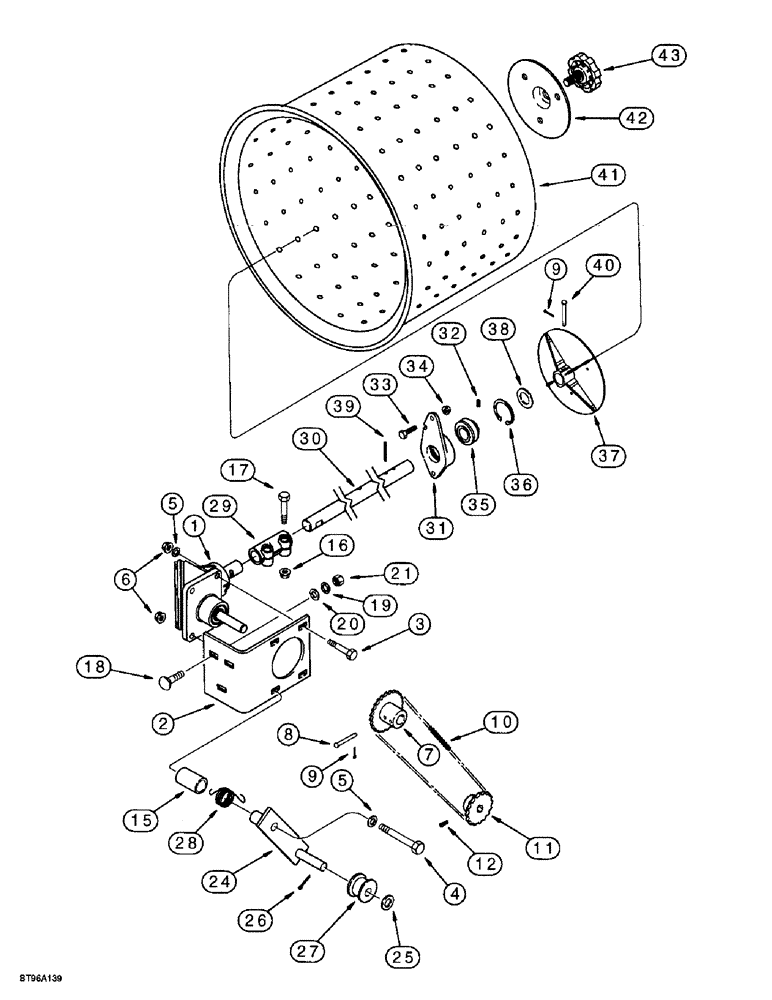

Схема запчастей Case IH 955 - (9C-18) - SEED DRUM DRIVE (09) - CHASSIS/ATTACHMENTS
19
40
5
12
4
41
27
17
7
21
35
25
9
1
32
36
34
39
29
11
9
38
31
5
3
18
20
6
43
26
30
33
24
8
42
28
10
37
16
15
2

Артикул

Название

Примечание

Количество

1

1250704C91

HOUSING

GEARBOX ASSEMBLY - seed drum drive, see page 9C-23

1шт.

2

226207A1

ANGLE

BRACKET - gearbox mounting

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

127168A1

SPROCKET ASSY.

SPROCKET - 24 teeth

1шт.

8

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - headed, 1/4 x 1-7/8 inch, grade 2

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

10

1547686C1

CHAIN (AG)

CHAIN - drive, use 111 links from 1790D bulk chain, (1) 241-1314 connecting link and (1) 241-1714 offset link, see below

1шт.

See page 9C-5F for drive chain and tightener arm parts for planter version 8 Row with 22 inch row spacing (sugar beet).

1шт.

10a

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch, not shown

1шт.

10b

241-1714

CHAIN LINK

LINK - offset, single pitch, No. 40, 1/2 inch pitch, not shown

1шт.

11

103681A1

SPROCKET

- 18 teeth

1шт.

12

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

1шт.

15

240433A1

SPACER

- tightener arm

1шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

18

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

3шт.

19

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

21

329-106

NUT,3/8"-16, G8

3шт.

24

240440A1

FRONT IDLER

ARM - tightener, chain

1шт.

25

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

26

432-1216

COTTER PIN,3/16" x 1"

1шт.

27

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

28

1277854C2

SPRING

- idler

1шт.

29

1250703C2

CLAMP

- drum shaft

1шт.

30

137132C3

SHAFT

- drum

1шт.

31

147365C1

BEARING HOUSING,36 mm ID x 66 mm OD x 24.5 mm

- bearing

1шт.

32

484-2254

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, hex socket headless, 1/4 NF x 1/4 inch, cone point

1шт.

33

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

35

149306C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

1шт.

36

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

37

137129C1

HOUSING

- drum drive

1шт.

38

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

39

38-31628

PIN,1/4" x 1 3/4", Coiled

1шт.

40

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

PIN - headed, 1/4 x 1-3/4 inch, grade 2

1шт.

41

REF

INSTRUCTION

DRUM - seed, see page 9C-21 for correct drum

1шт.

42

141509C1

CAP

PLATE - drum end

1шт.

43

141681C2

HANDLE

KNOB - drum

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

Выбрано товаров: 43
