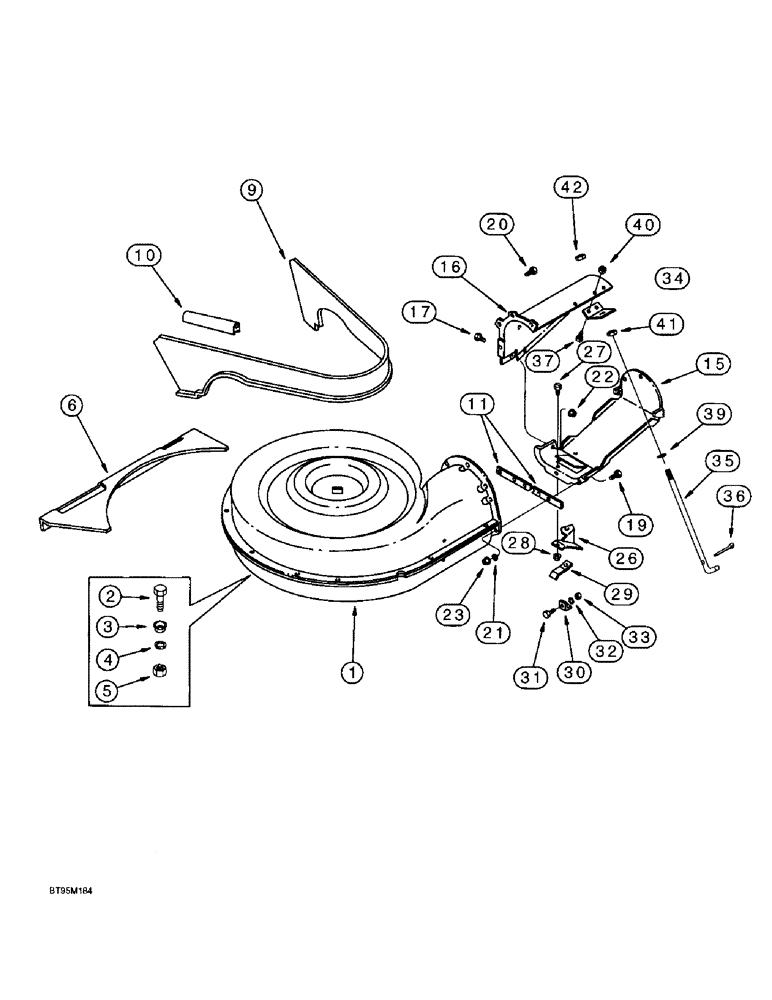

Запчасти Case IH 955 (9C-16) - FAN SHROUD (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
136957C4
SHROUD
- fan
1шт.
2
19505R1
BOLT,1/4" - 20 x 1", Class 2
- hex, special, 1/4 NC x 1 inch
8шт.
3
136969C1
FASTENER
NUT - push-on type, 1/4 inch
8шт.
4
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
8шт.
5
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
8шт.
6
1263902C1
SUPPORT
- fan shroud
1шт.
9
145047C94
SEAL
ASSEMBLY - air duct
1шт.
10
1264455C1
SEAL
- 1410 mm (55-1/2 inch) long, cut from 1267946C1 bulk seal, see below
1шт.
11
144842C2
SEAL
- fan shroud
1шт.
15
141208C1
DEFLECTOR
- air, upper
1шт.
16
141207C2
DEFLECTOR
- air, lower
1шт.
17
463-1108
SCREW,Hex Hd, #10-24 x 1/2"
- machine, hex head, No. 10 NC x 1/2 inch
5шт.
19
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
6шт.
20
281-14816
SELF-TAP SCREW,HWH, 5/16" - 18 x 1"
SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch
1шт.
22
231-51409
SERRATED NUT,Flg, USR, #10-24
5шт.
23
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
7шт.
26
57393C1
INDICATOR
BRACKET - air flow indicating
1шт.
27
463-1108
SCREW,Hex Hd, #10-24 x 1/2"
- machine, hex head, No. 10 NC x 1/2 inch
2шт.
28
231-51409
SERRATED NUT,Flg, USR, #10-24
2шт.
29
57394C1
INDICATOR
BAFFLE - fan shroud
1шт.
30
1263875C1
SUPPORT
BRACKET - bypass tube
2шт.
31
413-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
- hex, 5/16 NC x 1/2 inch
2шт.
33
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
2шт.
34
1264267C1
SUPPORT
- stabilizer rod
1шт.
35
1264268C1
ROD
- stabilizer
1шт.
36
432-616
COTTER PIN,3/32" x 1"
3/32" x 1"
1шт.
37
463-1108
SCREW,Hex Hd, #10-24 x 1/2"
- machine, hex head, No. 10 NC x 1/2 inch
2шт.
39
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32") 5/16"
1шт.
40
231-51409
SERRATED NUT,Flg, USR, #10-24
2шт.
41
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
42
232-4115
LOCK NUT,5/16"-18, GC
NUT, LOCK, 5/16"-18, GC
1шт.
1267946C1
SEAL
- bulk, 25 foot roll
1шт.
Выбрано товаров: 34
