Запчасти Case IH 955 (9C-06) - MODULE FRAME AND STEP, 6 ROW NARROW AND 6 ROW WIDE - RIGID, 8 ROW NARROW AND 8 ROW WIDE-RIGID (09) - CHASSIS/ATTACHMENTS

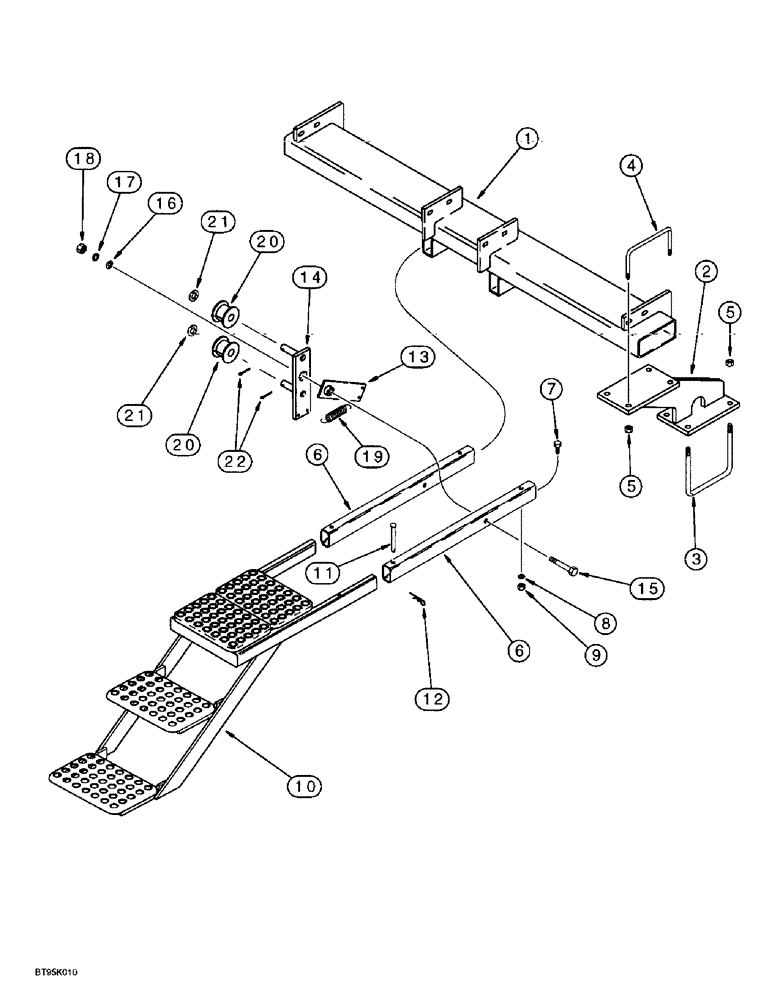

Схема запчастей Case IH 955 - (9C-06) - MODULE FRAME AND STEP, 6 ROW NARROW AND 6 ROW WIDE - RIGID, 8 ROW NARROW AND 8 ROW WIDE-RIGID (09) - CHASSIS/ATTACHMENTS
17
2
13
4
5
8
10
16
7
19
20
5
20
12
18
21
15
6
11
22
6
21
3
14
1
9

Артикул

Название

Примечание

Количество

1

141824A1

BAR

FRAME - mounting, module and step

1шт.

2

193481A1

SUPPORT

- module mounting frame

2шт.

3

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

4шт.

4

142583A1

U-BOLT

- 5/8 inch NC, 4 x 7 inch

4шт.

5

425-1010

NUT,5/8"-11, G5

16шт.

6

141790A1

TUBE,700 mm Length

- mounting, step and idler bracket

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

141792A1

STEP

- access, hopper

1шт.

11

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

2шт.

12

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

13

179283A1

PLATE ASSY.

BAR - mounting, spring and idler bracket

1шт.

14

179282A1

BAR

BRACKET - mounting, idler roller

1шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

16

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

- flat, 17/32 x 1-3/4 x 3/32 inch

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

19

650949C1

VALVE SPRING

SPRING - idler roller bracket

1шт.

20

1277726C1

ROLLER,48mm OD x 34mm L

- idler

2шт.

21

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

2шт.

22

432-1216

COTTER PIN,3/16" x 1"

2шт.

Выбрано товаров: 22
