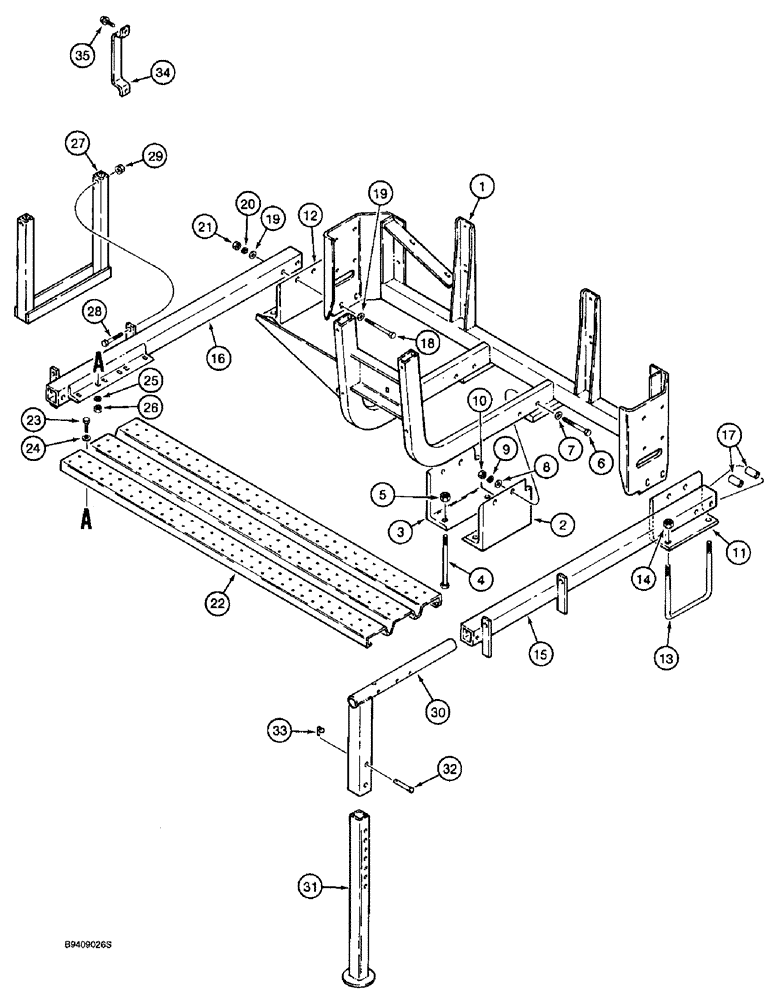

Запчасти Case IH 955 (9C-04) - MODULE FRAME, PLATFORM, STEP & SUPPORT STAND, 6/11 ROW & 8/15 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS

1

1986455C2

FRAME ASSY

FRAME - module (See page 9C-3, items 1 through 19, for module panels and mounting parts)

1шт.

2

127473A1

ANGLE

BRACKET - module center mounting, right-hand

1шт.

3

127472A1

ANGLE

BRACKET - module center mounting, left-hand

1шт.

4

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch

4шт.

5

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

6

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

4шт.

7

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

4шт.

8

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

329-108

NUT,1/2"-13, G8

4шт.

11

127478A3

ANGLE

BRACKET - module outer mounting, right-hand

1шт.

12

127542A3

ANGLE

BRACKET - module outer mounting, left-hand

1шт.

13

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, Serial Range: bracket-frame

2шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

128275A2

TUBE,383 mm Length

BRACKET - platform mounting, right-hand

1шт.

16

128274A2

TUBE,383 mm Length

BRACKET - platform mounting, left-hand

1шт.

17

128279A2

SPACER

- mounting bracket

4шт.

18

326-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

4шт.

19

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

8шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

329-108

NUT,1/2"-13, G8

4шт.

22

128278A1

PLATE

PLATFORM - module frame

1шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

24

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch

8шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

27

127729A1

STEP

- platform

1шт.

28

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

30

1986446C2

SUPPORT

- stand, upper

1шт.

31

1279976C1

SUPPORT

- stand, lower

1шт.

32

439-5848

HEADED PIN,1/2" x 3", G5

PIN - headed, 1/2 x 3 inch

2шт.

33

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

2шт.

34

137937A1

HANDLE

- assist, module

1шт.

35

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

- hex head, self-tapping, 5/16 NC x 13/16 inch

2шт.
