Запчасти Case IH 955 (9B-16) - SECONDARY SEED DRIVE, 8 ROW WIDE - RIGID, 12 ROW NARROW -RIGID (09) - CHASSIS/ATTACHMENTS

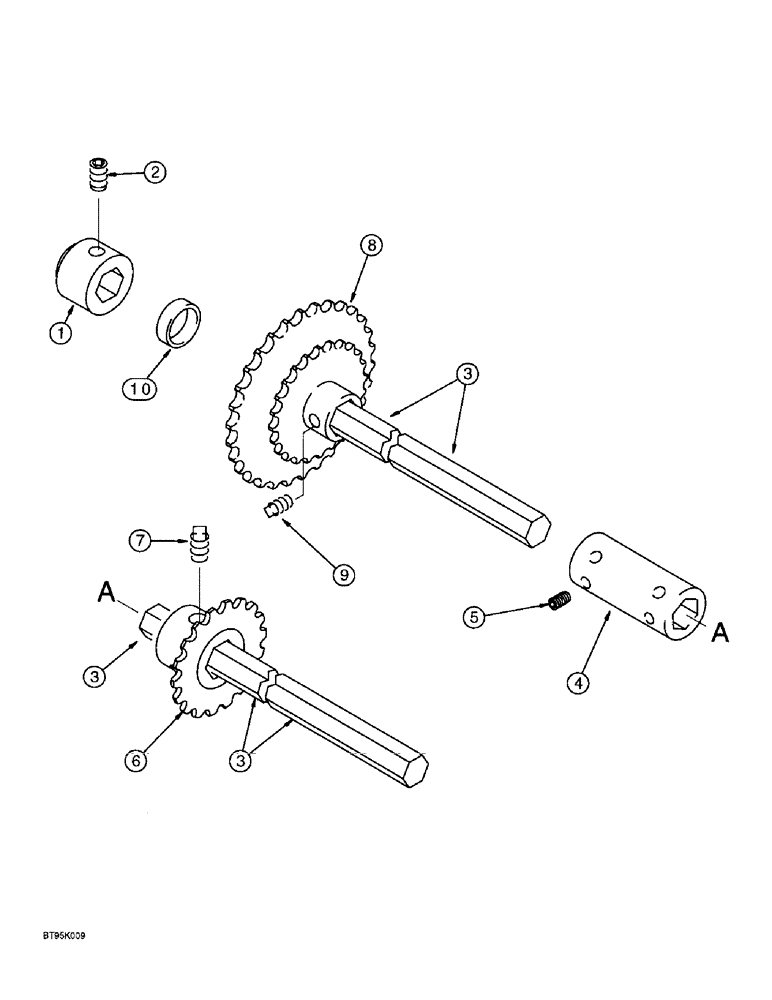

Схема запчастей Case IH 955 - (9B-16) - SECONDARY SEED DRIVE, 8 ROW WIDE - RIGID, 12 ROW NARROW -RIGID (09) - CHASSIS/ATTACHMENTS
6
5
4
3
7
8
3
10
3
2
1
9

Артикул

Название

Примечание

Количество

1

141572C2

COLLAR

HUB - sprocket, locking

1шт.

2

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2шт.

3

134153C1

BAR

SHAFT - drive, hex, 22 (7/8) x 3626 mm (142-3/4 inch) long, left-hand and right-hand, 8 row wide rigid

2шт.

3

134152C1

BAR

SHAFT - drive, hex, 22 (7/8) x 4332 mm (170-9/16 inch) long, left-hand and right-hand, 12 row narrow rigid

2шт.

4

1254283C1

COUPLING

COUPLING - 3-9/16 inch (90 mm) long, drive shaft

1шт.

5

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

4шт.

6

103681A1

SPROCKET

- 18 teeth, drum drive, (1) used with 8 row wide - (2) used with 12 row narrow

1-2шт.

7

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point (2) used with 8 row wide - (4) used with 12 row narrow

2-4шт.

8

143163A1

SPROCKET ASSY.

SPROCKET - 20 and 34 teeth, final output

1шт.

9

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

10

1277812C2

SPACER

- sprocket

1шт.

Выбрано товаров: 11
