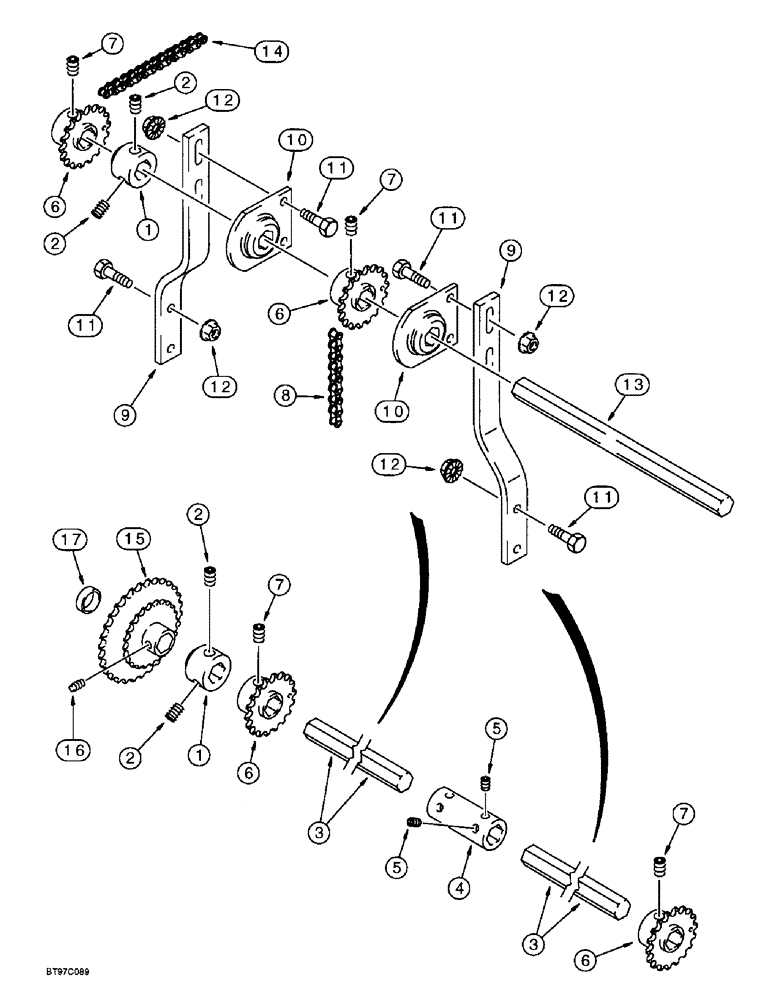

Запчасти Case IH 955 (9B-15A) - SECONDARY SEED DRIVE, 12 ROW WITH 22 INCH ROW SPACING, SUGAR BEET (09) - CHASSIS/ATTACHMENTS

1

141572C2

COLLAR

HUB - sprocket

3шт.

2

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

6шт.

3

176895A1

BAR

SHAFT - drive, hex, 22 (7/8) x 3210 mm (126-3/8 inch) long, secondary drive, 12 row with 22 inch row spacing

2шт.

4

1254283C1

COUPLING

COUPLING - 3-9/16 inch (90 mm) long, secondary drive shafts

1шт.

5

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

4шт.

6

103681A1

SPROCKET

- 18 teeth, jackshaft and drum drive

6шт.

7

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

12шт.

8

239050A1

CHAIN (AG)

CHAIN - drive, use 55 links from 1790D bulk chain, (1) 241-1314 connecting link and (2) 241-1714 offset links, jackshaft, see below

2шт.

9

190425A1

PLATE

SUPPORT - bearing, jackshaft

4шт.

10

102724A1

BALL BEARING

HANGER - bearing

4шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

16шт.

12

231-5146

FLANGE NUT,3/8"-16

16шт.

13

90844C1

SHAFT

- drive, hex, 22 (7/8) x 330 mm (13 inch) long, jackshaft

2шт.

14

239051A1

CHAIN (AG)

CHAIN - drive, use 95 links from 1790D bulk chain, (1) 241-1314 connecting link and (2) 241-1714 offset links, seed drum, see below

2шт.

15

143163A1

SPROCKET ASSY.

SPROCKET - 20 and 34 teeth, final output

1шт.

16

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2шт.

17

1277812C2

SPACER

- sprocket

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.
