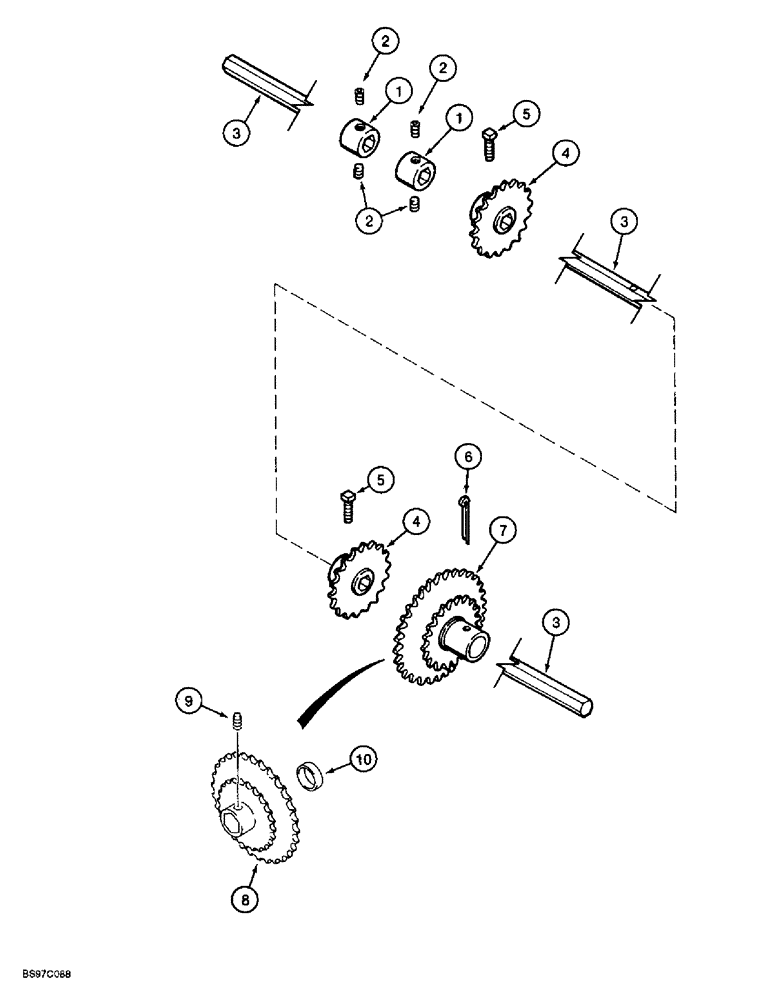

Запчасти Case IH 955 (9B-14) - SECONDARY SEED DRIVE, 6/11 ROW AND 8/15 ROW SOLID ROW CROP, 8 ROW W/ 22" ROW SPACING, SUGAR BEET (09) - CHASSIS/ATTACHMENTS

1

141572C2

COLLAR

HUB - sprocket

1-2шт.

2

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2-4шт.

3

232970A1

SHAFT

- drive, hex, 22 (7/8) x 4453 mm (175-5/16 inch) long, secondary drive, 6/11 row

1шт.

3

278931A1

SHAFT

- drive, hex, 22 (7/8) x 6014 mm (236-3/4 inch) long, secondary drive, 8/15 row

1шт.

3

128984A1

SHAFT

- drive, hex, 22 (7/8) x 4597 mm (181 inch) long, secondary drive, 8 row with 22 inch row spacing

1шт.

4

103681A1

SPROCKET

- 18 teeth, drum drive

1-2шт.

5

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2-4шт.

6

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), , used with 90906C2 sprocket 1/4" x 2 1/4"

1шт.

7

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output, used with 6/11 row and 8/15 row drive shafts, planters built, Serial Range: prior-1997

1шт.

8

143163A1

SPROCKET ASSY.

SPROCKET - 20 and 34 teeth, final output, used with 6/11, 8/15 row and 8 row with 22 inch row spacing drive shafts, planters built 1997 and after

1шт.

9

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2шт.

10

1277812C2

SPACER

- sprocket, used with 143163A1 sprocket

1шт.
