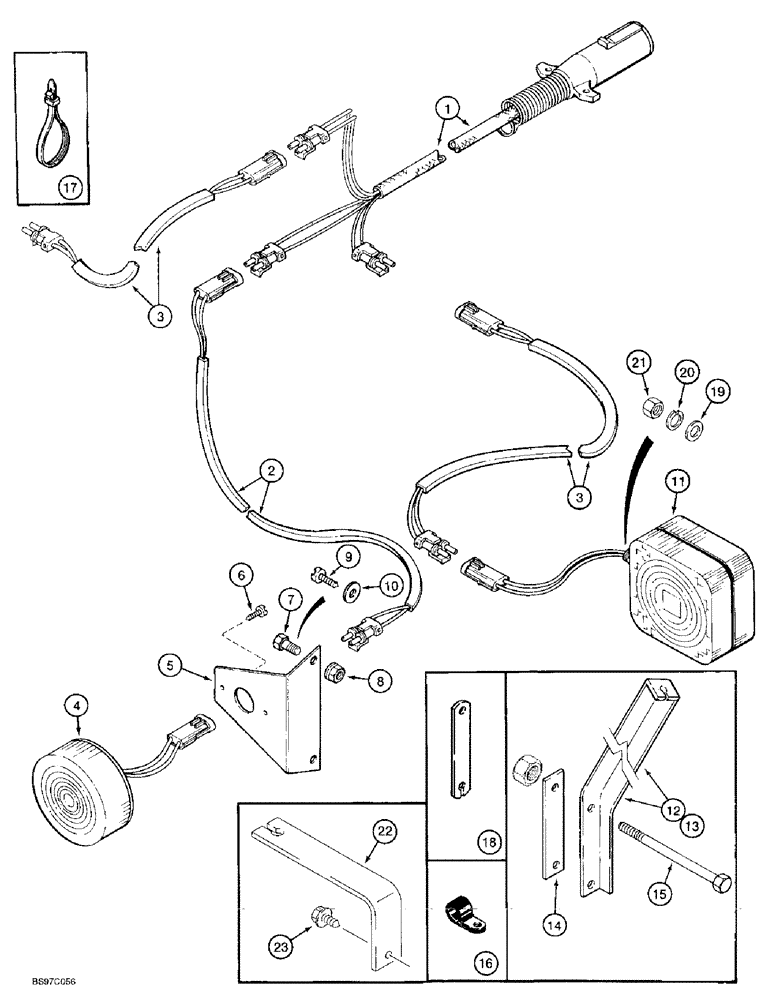

Запчасти Case IH 955 (4-02) - LIGHTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

92091C2

HARNESS

- main

1шт.

2

92095C1

HARNESS

- lamp, tail lamp, 88-9/16 inch (2250 mm) long, 6 row narrow, 6 row wide and 8 row narrow

1шт.

3

92096C1

CABLE ASSY.

HARNESS - lamp, tail lamp and warning, 118-1/8 inch (3000 mm) long, 8 row wide, 12 row narrow and 6/11 row solid row crop

2-3шт.

3

92098C1

HARNESS

- lamp, warning, 198-13/16 inch (5050 mm) long, 6 row narrow, 6 row wide and 8 row narrow

2шт.

3

92097C1

HARNESS

- lamp, warning, 158-1/4 inch (4020 mm) long, 8/15 row solid row crop and 12 row with 22 inch row spacing

2шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail, parts list page 4-7

1шт.

5

1333942C1

BRACKET

- tail lamp mounting

1шт.

6

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex washer head, No. 10-16 x 5/8 inch

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

for SMV bracket mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, for 11 and 15 row solid row crop mounting

2шт.

8

231-5146

FLANGE NUT,3/8"-16

for SMV bracket mounting Flg, USR, 3/8"-16

2шт.

9

276-14810

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

SCREW - self-tapping, hex head, 5/16 NC x 5/8 inch, for module mounting

2шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

11

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal, parts list page 4-7

2шт.

12

1333937C2

ANGLE

BRACKET - lamp support, right-hand, all rigid except solid row crop

1-2шт.

Used for right-hand and left-hand warning lamp mounting, 8 row with 22 inch row spacing. Also requires (2) 1250813C1 U-bolts and (4) 425-1010 hex nuts for attaching to main frame.

1шт.

13

1333936C2

ANGLE

BRACKET - lamp support, left-hand, all rigid except solid row crop

1шт.

14

1333940C1

BAR

SUPPORT - backup, lamp, all rigid except solid row crop

2шт.

15

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch, all rigid except solid row crop

4шт.

16

384557R1

CLIP

CLAMP - P-type, harness retaining

2шт.

17

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie, retaining, 28-1/4 inch inch

6шт.

18

177118A1

BRACKET

- warning lamp mounting, 6/11 and 8/15 row solid row crop, planters built, Serial Range: prior-1997

2шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

22

278403A1

BRACKET

- mounting, warning lamp, 6/11 row and 8/15 row solid row crop (planters built 1997 and after) and 12 row with 22 inch row spacing

2шт.

23

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

- hex head, self-tapping, 5/16 NC x 13/16 inch

2шт.
