Запчасти Case IH 955 (9B-06) - PRIMARY SEED DRIVE, DRIVE RATCHET SPROCKET (09) - CHASSIS/ATTACHMENTS

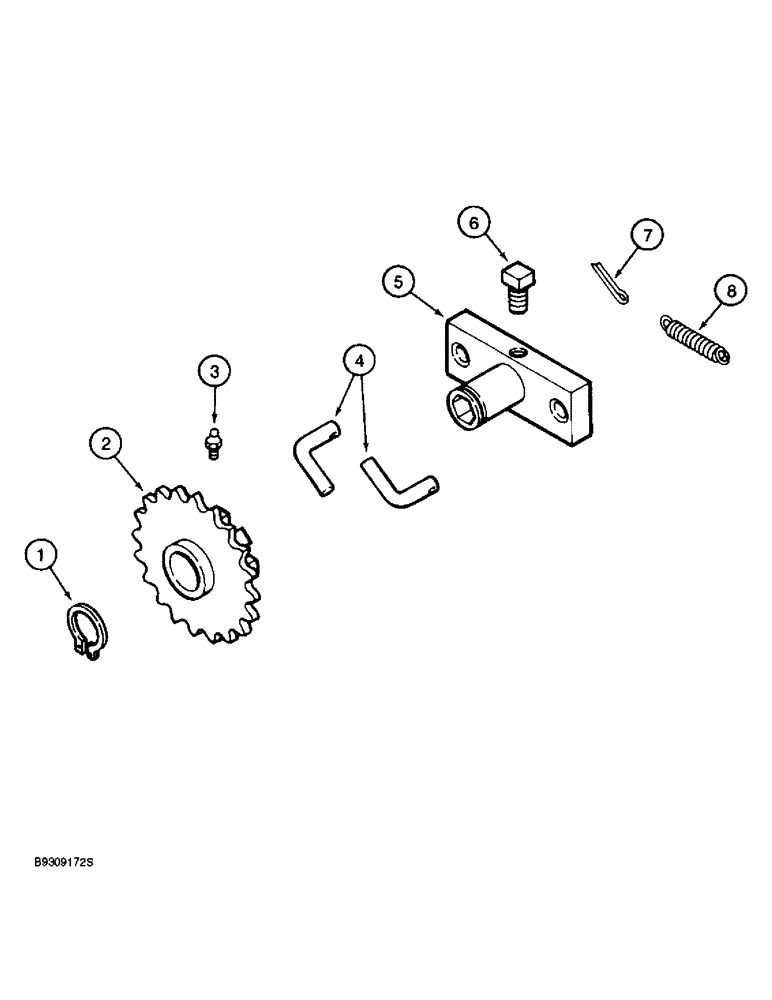

Схема запчастей Case IH 955 - (9B-06) - PRIMARY SEED DRIVE, DRIVE RATCHET SPROCKET (09) - CHASSIS/ATTACHMENTS
7
2
6
1
5
4
3
8

Артикул

Название

Примечание

Количество

1277925C91

RATCHET

SPROCKET ASSEMBLY - left-hand drive ratchet, 23 teeth

1шт.

1277926C91

PINION

SPROCKET ASSEMBLY - right-hand drive ratchet, 23 teeth

1шт.

1

100-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

2

1277993C1

SPROCKET ASSY.

SPROCKET - ratchet, 23 teeth

1шт.

3

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

1шт.

4

1277994C1

PIN,11.11mm OD

- L-type

2шт.

5

1279873C1

BAR ASSY.

COUPLER - ratchet

1шт.

6

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

7

432-1216

COTTER PIN,3/16" x 1"

2шт.

8

1277995C1

SPRING

- ratchet

2шт.

Выбрано товаров: 10
