Запчасти Case IH 955 (9B-04) - PRIMARY SEED DRIVE, 6/11 ROW & 8/15 ROW SOLID ROW CROP, 8ROW &12 ROW W/22INCH ROW SPACING(SUGARBEET) (09) - CHASSIS/ATTACHMENTS

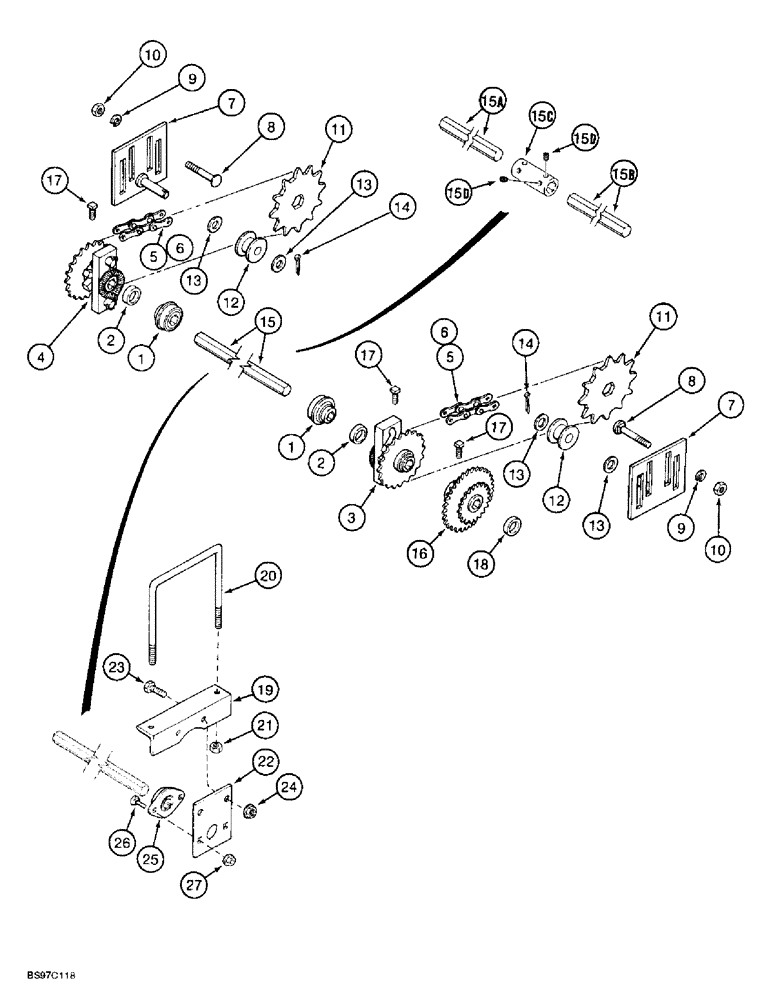

Схема запчастей Case IH 955 - (9B-04) - PRIMARY SEED DRIVE, 6/11 ROW & 8/15 ROW SOLID ROW CROP, 8ROW &12 ROW W/22INCH ROW SPACING(SUGARBEET) (09) - CHASSIS/ATTACHMENTS
8
7
13
19
4
2
26
15a
1
20
15
12
13
17
9
15c
10
6
11
8
17
27
14
7
22
12
17
23
15d
10
13
9
6
24
5
13
21
25
15b
15d
14
5
11
3
18
2
16
1

Артикул

Название

Примечание

Количество

1

134181C92

BALL BEARING,2.125" OD x 0.046"

- ball, primary drive

2шт.

2

1277812C2

SPACER

- sprocket, drive shaft

2шт.

3

1277925C91

RATCHET

SPROCKET ASSEMBLY - left-hand drive ratchet, 23 teeth, parts list page 9B-7

1шт.

4

1277926C91

PINION

SPROCKET ASSEMBLY - right-hand drive ratchet, 23 teeth, parts list page 9B-7

1шт.

5

1277739C91

CHAIN (AG)

CHAIN - primary wheel drive, No. 2050, use 45 links from 569089R91 bulk chain and (1) 1277928C91 connecting link, primary wheel drive, see below

2шт.

6

1277928C91

LINK

- chain connecting, primary wheel drive chain, No. 2050

1-2шт.

7

193948A1

IDLER

PLATE - wheel drive idler

2шт.

8

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

1277736C1

SPROCKET

- drive wheel, 12 teeth

2шт.

12

1277726C1

ROLLER,48mm OD x 34mm L

- idler, drive chain

2шт.

13

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

14

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

134152C1

BAR

SHAFT - drive, hex, 22 (7/8) x 4332 mm (170-9/16 inch) long, primary drive, 6/11 row and 8 row with 22 inch row spacing

1шт.

15

132421A1

BAR

SHAFT - drive, hex, 22 (7/8) x 5486 mm (216 inch) long, primary drive, 8/15 row

1шт.

15a

176895A1

BAR

SHAFT - drive, hex, 22 (7/8) x 3210 mm (126-3/8 inch) long, primary drive, left-hand, 12 row with 22 inch row spacing

1шт.

15b

1254282C1

BAR

SHAFT - drive, hex, 22 (7/8) x 3000 mm (118-1/8 inch) long, primary drive, right-hand, 12 row with 22 inch row spacing

1шт.

15c

1254283C1

COUPLING

COUPLING - 3-9/16 inch (90 mm) long, primary drive shafts

1шт.

15d

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

4шт.

16

90907C1

DRIVE SPROCKET

SPROCKET - 20 and 32 teeth, speed change

1шт.

17

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

6шт.

18

144812C1

SPACER

- double sprocket

1шт.

19

137482C3

ANGLE

- bearing

1-2шт.

20

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, angle mounting

1-2шт.

21

425-1010

NUT,5/8"-11, G5

2-4шт.

22

1254171C1

PLATE

- bearing support

1-2шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2-4шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2-4шт.

25

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

2-3шт.

26

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4-6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4-6шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk roll, 10 foot long, No. 2050, 10 foot roll

1шт.

Выбрано товаров: 33
