Запчасти Case IH 955 (9A-16) - ASSIST WHEELS, 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

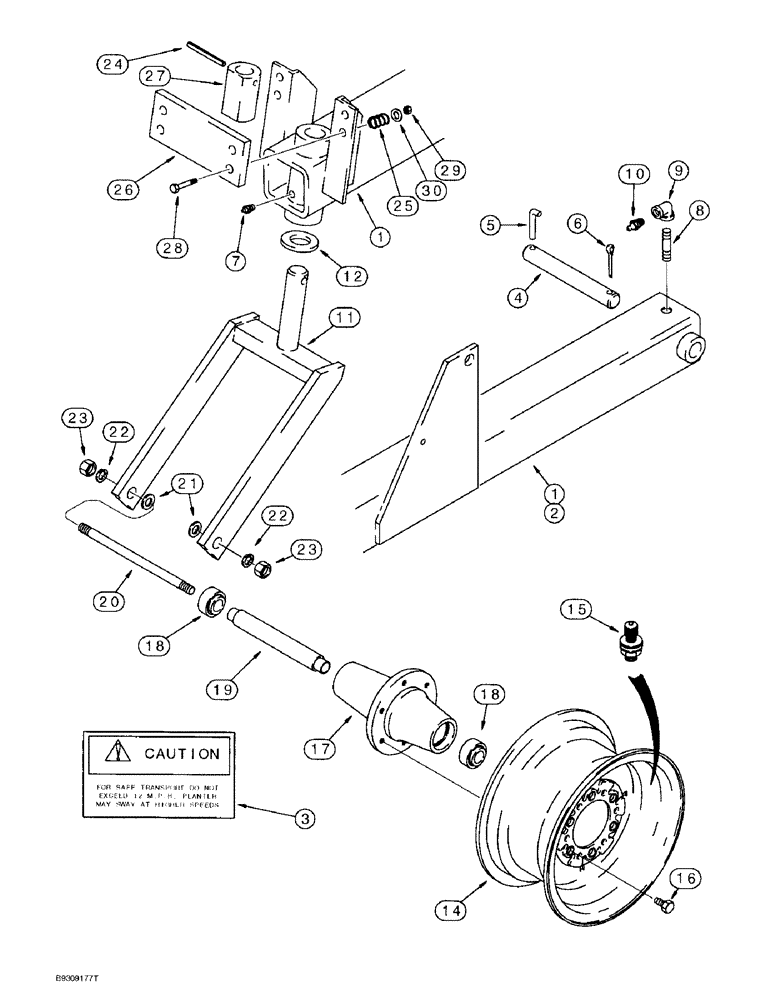

Схема запчастей Case IH 955 - (9A-16) - ASSIST WHEELS, 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS
20
22
27
16
30
6
18
25
10
12
11
23
1
14
26
18
19
2
7
9
8
29
23
24
1
21
22
3
5
4
17
28
15

Артикул

Название

Примечание

Количество

1

110748A3

TUBE

ARM - assist wheel, right-hand, includes decal

1шт.

2

110749A3

TUBE

ARM - assist wheel, left-hand, includes decal (not shown)

1шт.

3

1264465C1

PRODUCT GRAPHIC

DECAL - Caution, for safe transport

1шт.

4

1250685C2

PIN,38.1mm OD x 264mm L

- pivot, assist wheel

2шт.

5

491601R3

PIN

- pivot lock

2шт.

6

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), 1/2" x 2"

2шт.

7

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 15/32 inch

2шт.

8

221-1109

PIPE,Nipple, 1/8" NPT x 2"

NIPPLE - straight, 1/8 PT x 2 inch

2шт.

9

105412

ELBOW,90 Degree, 1/8" NPT

- pipe, 90 degree, 1/8 inch PT

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

11

137873A1

ARM ASSY.

PIVOT - assist wheel

2шт.

12

462997R2

WASHER

- wear

4шт.

14

481344R91

WHEEL

- 14 (356) x 8 inch (203 mm)

2шт.

15

810768C1

VALVE

- inflation, steel

2шт.

16

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

17

541757R1

HUB

- wheel

2шт.

18

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - ball

4шт.

19

541758R1

TUBE

- spacer, axle rod

2шт.

20

541759R3

ROD

- axle

2шт.

21

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

22

492-11100

LOCK WASHER,1"

1"

4шт.

23

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

24

438-32448

PIN,3/8" x 3", Coiled

2шт.

25

137969A1

SPRING

- detent, assist wheel

8шт.

26

137881A1

BAR

- cam follower

2шт.

27

137880A1

CAM

- snubber

2шт.

28

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

29

231-41410

NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

30

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

8шт.

Выбрано товаров: 29
