Запчасти Case IH 955 (9A-06) - MAIN FRAME, SEED MODULE MOUNTING & STEP PLATFORM, 12 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS

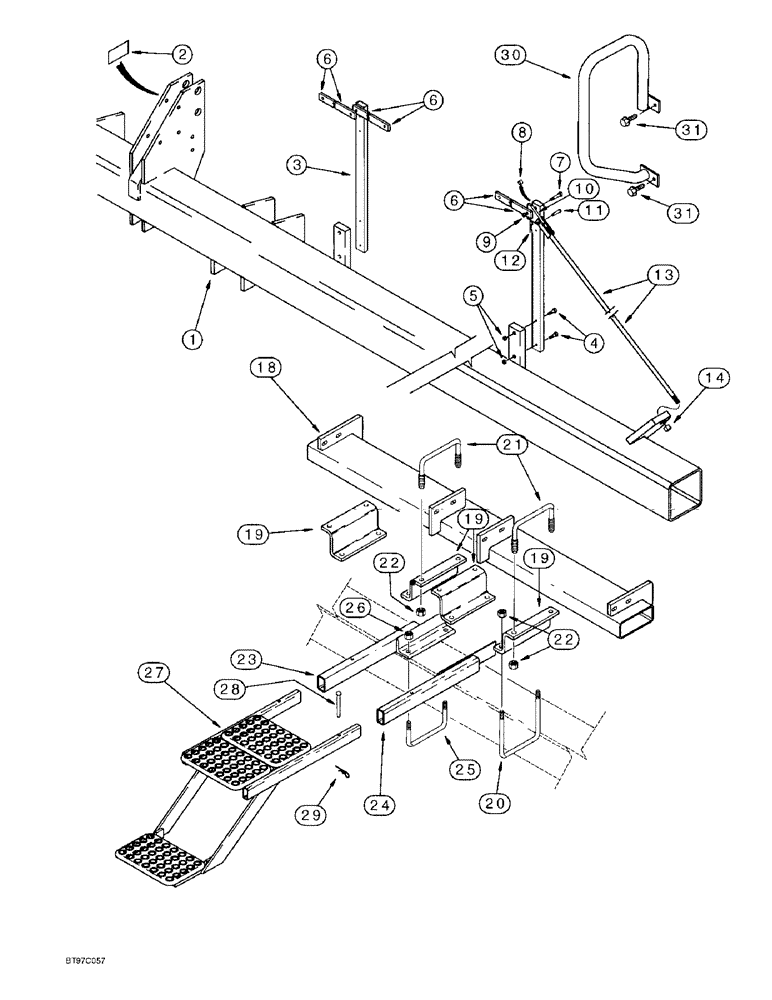

Схема запчастей Case IH 955 - (9A-06) - MAIN FRAME, SEED MODULE MOUNTING & STEP PLATFORM, 12 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS
7
19
5
18
30
22
26
29
19
21
9
27
31
13
10
1
14
28
24
20
12
6
3
8
6
31
11
23
6
4
2
25
22
19

Артикул

Название

Примечание

Количество

1

176071A2

FRAME ASSY

FRAME - main, includes decal, 12 row narrow

1шт.

See page 9A-3, items 16 through 21, for parking stand and attaching parts and page 9A-5B, items 5 through 10, for upper and lower hitch mounting parts.

1шт.

2

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual, not shown, see item 10, page 9F-11

1шт.

3

143107A1

SUPPORT TUBE,900 mm Length

SUPPORT - frame truss

4шт.

4

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

8шт.

5

231-41410

NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

6

143105A1

BAR

TRUSS - main frame

3шт.

7

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

- hex, 1 NC x 5 inch

6шт.

8

490858R1

SPACER

BUSHING - gauge wheel arm

6шт.

9

231-41416

NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

6шт.

10

143106A1

PLATE

- connecting, Serial Range: truss-rod

2шт.

11

439-51648

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

2шт.

12

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

13

143109A1

ROD ASSY.

ROD -, Serial Range: truss-frame

2шт.

14

231-41416

NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

2шт.

18

176705A1

BAR

SUPPORT - module frame

2шт.

19

176703A1

BRACKET

- mounting, module frame support to main frame

8шт.

20

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, bracket to main frame

8шт.

21

142583A1

U-BOLT

- 5/8 inch NC, 4 x 7 inch, bracket to module frame support

8шт.

22

425-1010

NUT,5/8"-11, G5

32шт.

23

177113A1

SUPPORT

BRACKET - platform mounting, left-hand

2шт.

24

177114A1

BRACKET

- platform mounting, right-hand

2шт.

25

142583A1

U-BOLT

- 5/8 inch NC, 4 x 7 inch

4шт.

26

425-1010

NUT,5/8"-11, G5

8шт.

27

188919A1

STEP

PLATFORM - hopper access, two step

2шт.

28

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

4шт.

29

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

4шт.

30

179268A1

HANDLE

- platform, hopper access

2шт.

31

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

- self-tapping, hex washer head, 3/8 NC x 2 inch

4шт.
