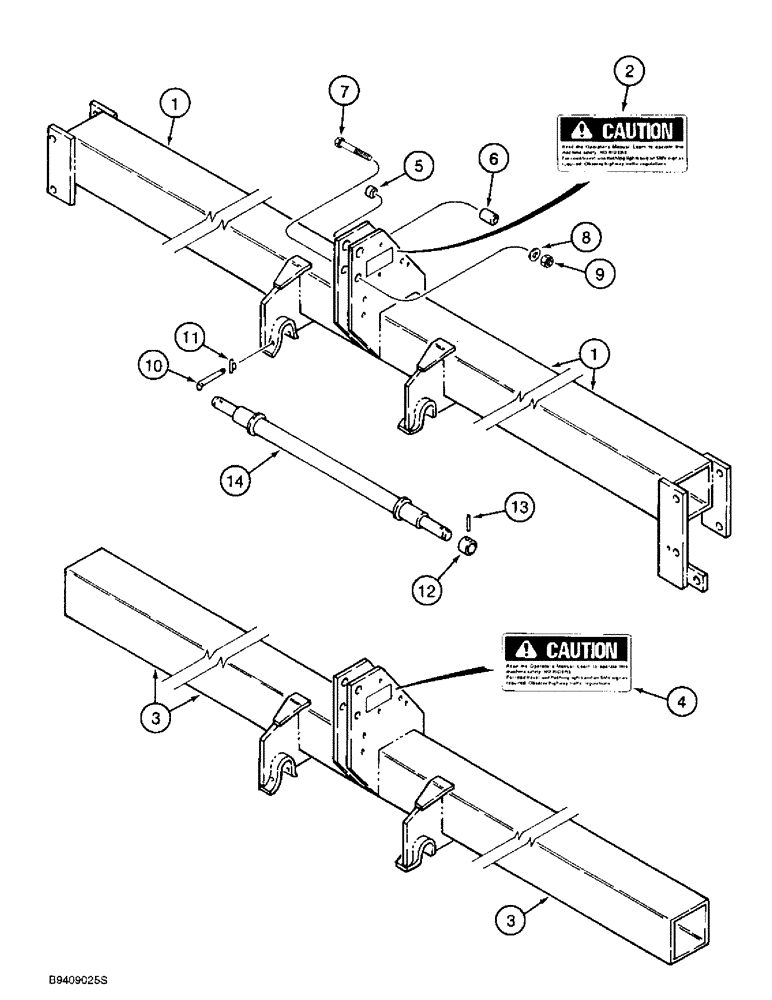

Запчасти Case IH 955 (9A-04) - MAIN FRAME, 6/11 ROW AND 8/15 ROW SOLID ROW CROP, PLANTERS BUILT PRIOR TO 1997 (09) - CHASSIS/ATTACHMENTS

1

133081A2

FRAME ASSY

FRAME ASSEMBLY - main, includes decal (11 row)

1шт.

2

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual, see item 10, page 9F-11

1шт.

3

133082A2

FRAME ASSY

FRAME ASSEMBLY - main, includes decal (15 row)

1шт.

4

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual, see item 10, page 9F-11

1шт.

5

97772C1

BUSHING

- mast, used with category II hitch

2шт.

6

462425R2

SPACER

- mast

1шт.

7

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

9

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

10

141292C1

PIN

- hitch, 3/4 inch diameter

2шт.

11

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

2шт.

12

401233R1

COLLAR

- thrust

2шт.

13

38-33240

PIN,1/2" x 2 1/2", Coiled

2шт.

14

137084C1

SPINDLE

- hitch, Category II, if used

1шт.

14

137083C1

SPINDLE

- hitch, Category III, if used

1шт.

14

1980778C1

SPINDLE

- hitch, Category III with Category II spread, if used

1шт.
