(9A-03A) - MAIN FRAME, 8 ROW NARROW & 8 ROW WIDE, 6 ROW NARROW & 6 ROW WIDE PLANTERS BUILT 1997 & AFTER

Запчасти Case IH 955 (9A-03A) - MAIN FRAME, 8 ROW NARROW & 8 ROW WIDE, 6 ROW NARROW & 6 ROW WIDE PLANTERS BUILT 1997 & AFTER (09) - CHASSIS/ATTACHMENTS

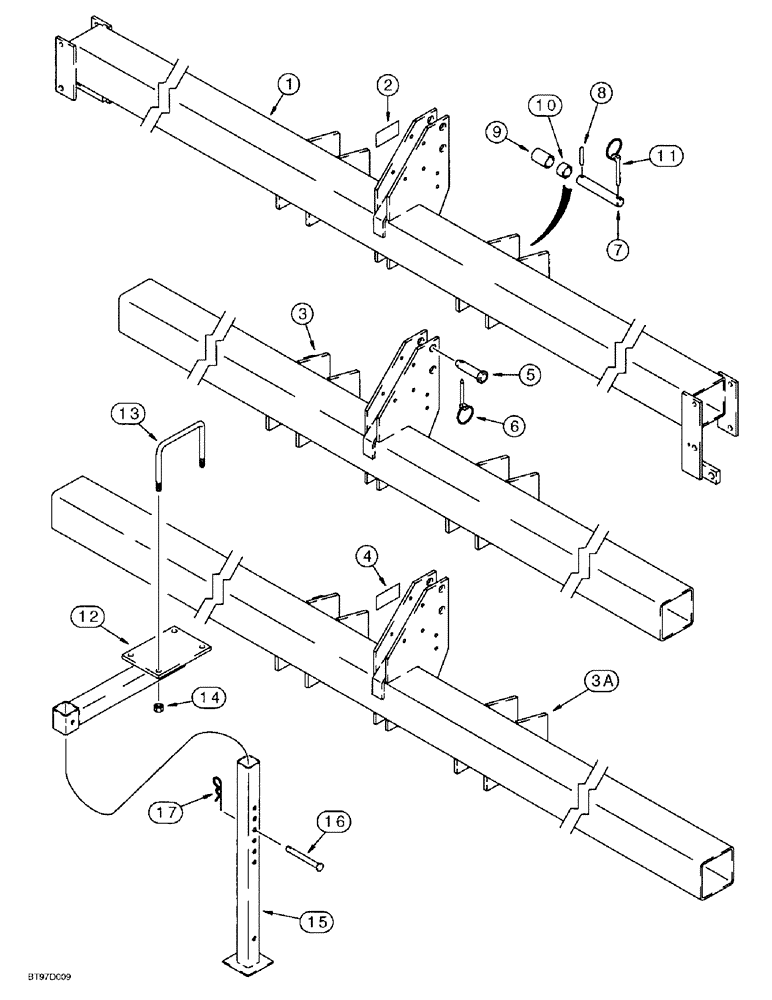

Схема запчастей Case IH 955 - (9A-03A) - MAIN FRAME, 8 ROW NARROW & 8 ROW WIDE, 6 ROW NARROW & 6 ROW WIDE PLANTERS BUILT 1997 & AFTER (09) - CHASSIS/ATTACHMENTS
10
7
6
1
6
3a
3
2
14
15
11
12
13
8
16
17
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

249815A1

FRAME

- main, includes decal, 6 row narrow

1шт.

2

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual, not shown, see item 10, page 9F-11

1шт.

3

247230A1

FRAME

- main, includes decal, 6 row wide and 8 row narrow

1шт.

3a

231066A1

FRAME

ASSEMBLY - main, includes decal, 8 row wide

1шт.

4

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual, not shown, see item 10, page 9F-11

1шт.

5

392211R2

PIN

- frame, upper link

1шт.

6

372907R91

LINCH PIN

PIN - self-locking

1шт.

7

236592A1

PIN

- frame, lower link

2шт.

8

438-33240

PIN,1/2" x 2 1/2", Coiled

2шт.

9

599801R1

SPACER

- pin, long

2шт.

10

599802R1

SPACER

- pin, short

2шт.

11

372907R91

LINCH PIN

PIN - self-locking

2шт.

12

220702A1

SUPPORT

- parking stand tube

2шт.

13

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

4шт.

14

425-1010

NUT,5/8"-11, G5

8шт.

15

134121C1

SUPPORT TUBE

TUBE - parking stand

2шт.

16

439-1856

HEADED PIN,1/2" x 3 1/2"

PIN - headed, 1/2 x 3-1/2 inch, grade 2

2шт.

17

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

2шт.
