Запчасти Case IH 955 (9A-02) - MAIN FRAME, 8 ROW NARROW & 8 ROW WIDE, 6 ROW NARROW & 6 ROW WIDE PLANTERS BUILT PRIOR TO 1997 (09) - CHASSIS/ATTACHMENTS

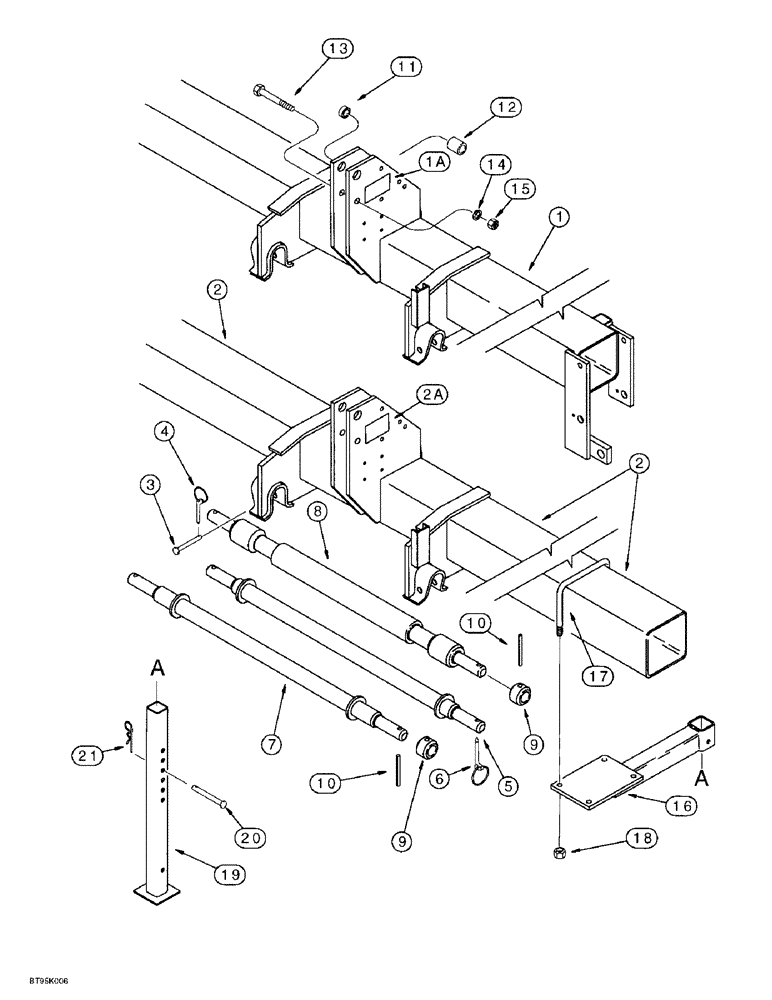

Схема запчастей Case IH 955 - (9A-02) - MAIN FRAME, 8 ROW NARROW & 8 ROW WIDE, 6 ROW NARROW & 6 ROW WIDE PLANTERS BUILT PRIOR TO 1997 (09) - CHASSIS/ATTACHMENTS
21
2a
18
9
19
10
7
8
11
12
13
14
2
1a
2
9
5
20
6
10
15
17
3
1
4
16

Артикул

Название

Примечание

Количество

1

176068A2

FRAME ASSY

FRAME - main, includes decal, 6 row narrow

1шт.

1a

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual, not shown, see item 10, page 9F-11

1шт.

2

176069A2

FRAME ASSY

FRAME - main, includes decal, 6 row wide and 8 row narrow

1шт.

2

176070A2

FRAME ASSY

FRAME - main, includes decal, 8 row wide

1шт.

2a

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual, not shown, see item 10, page 9F-11

1шт.

3

141292C1

PIN

- hitch, 3/4 inch diameter

2шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock, 1/4 inch diameter

2шт.

5

137084C1

SPINDLE

- hitch, Category II, if used

1шт.

6

A33509

PIN,11.18mm OD

- lock, 7/16 inch diameter

2шт.

7

137083C1

SPINDLE

- hitch, Category III, if used

1шт.

8

189382A1

SPINDLE

- hitch, Category III, heavy duty, if used

1шт.

9

401233R1

COLLAR

- thrust

2шт.

10

38-33240

PIN,1/2" x 2 1/2", Coiled

2шт.

11

97772C1

BUSHING

- mast, used with Category II hitch

2шт.

12

462425R2

SPACER

- mast

1шт.

13

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

14

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

15

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

16

220702A1

SUPPORT

- parking stand tube

2шт.

17

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

4шт.

18

425-1010

NUT,5/8"-11, G5

8шт.

19

134121C1

SUPPORT TUBE

TUBE - parking stand

2шт.

20

439-1856

HEADED PIN,1/2" x 3 1/2"

PIN - headed, 1/2 x 3-1/2 inch, grade 2

2шт.

21

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

2шт.

Выбрано товаров: 24
