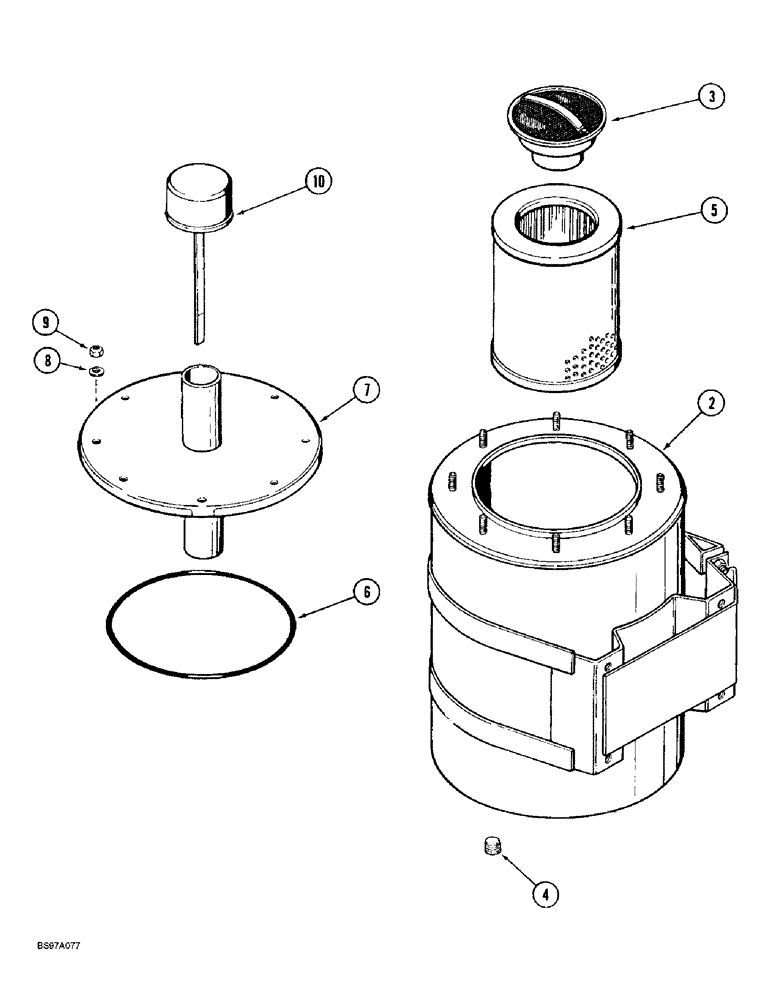

Запчасти Case IH 955 (8-56) - HYDRAULIC RESERVOIR, 12 ROW NARROW - VERTICAL FOLD, 6/11 ROW & 8/15 ROW SOLID ROW CROP (08) - HYDRAULICS

156395C91

RESERVOIR

ASSEMBLY - hydraulic oil, 3 gallon

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - reservoir (Order 156395C91)

1шт.

3

386121R92

VALVE

- relief

1шт.

4

444699

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

1шт.

5

528493R3

HYDRAULIC OIL FILTER

ELEMENT - tank filter

1шт.

6

238-5440

O-RING,0.275" Thk x 6.725" ID, -440, Cl 5, 75 Duro

- 6-3/4 ID x 1/4 inch wide

1шт.

7

163646C91

COVER

- reservoir

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

10

567521R91

CAP

DIPSTICK - reservoir

1шт.
