Запчасти Case IH 955 (8-54) - SEED MODULE BLOWER MOTOR, ALL PLANTERS (08) - HYDRAULICS

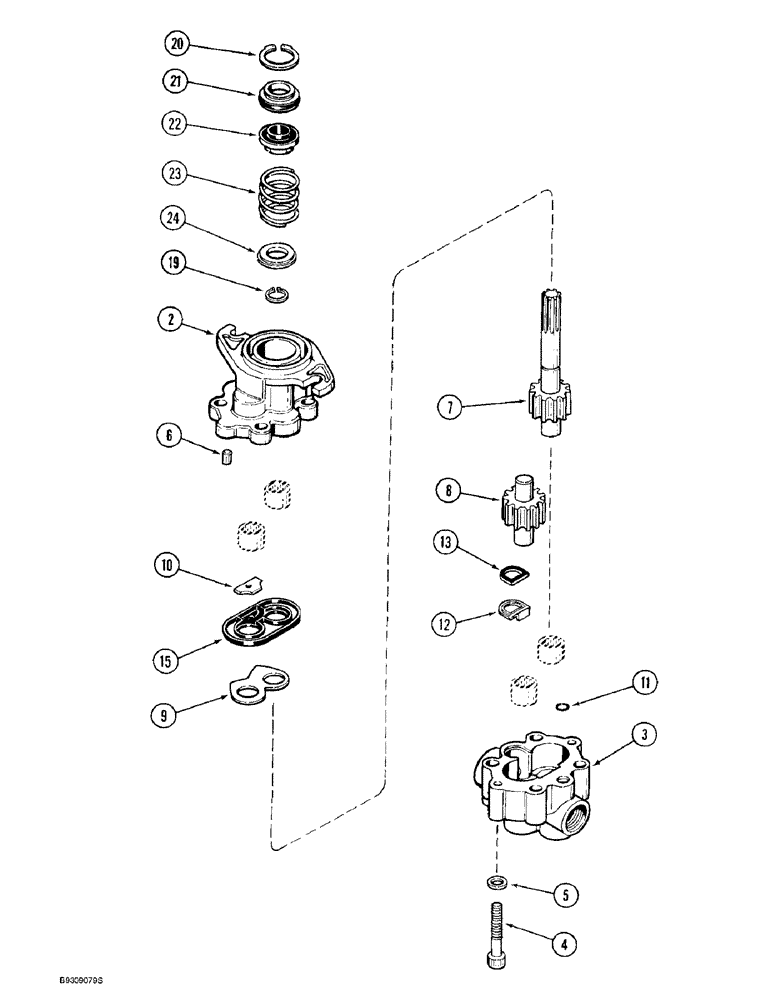

Схема запчастей Case IH 955 - (8-54) - SEED MODULE BLOWER MOTOR, ALL PLANTERS (08) - HYDRAULICS
22
8
15
10
6
19
11
13
12
21
24
9
3
5
4
23
2
20
7

Артикул

Название

Примечание

Количество

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module

1шт.

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH MOUNTED PLANTER, N.A. Only

1шт.

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - motor (Order 1272056C92)

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - motor housing (Order 1272056C92)

1шт.

4

NSS

NOT SOLD SEPARAT

BOLT - retaining, hex socket

4шт.

5

NSS

NOT SOLD SEPARAT

WASHER - retaining

4шт.

6

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

7

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - motor drive (Order 1272056C92)

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - motor idler (Order 1272056C92)

1шт.

1272340C2

KIT

- repair, motor

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - anti-extrusion

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - cover

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - gasket

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - D

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - wear plate

1шт.

19

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

20

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

21

NSS

NOT SOLD SEPARAT

RETAINER - shaft seal (Includes O-ring)

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - seal

1шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

Выбрано товаров: 23
