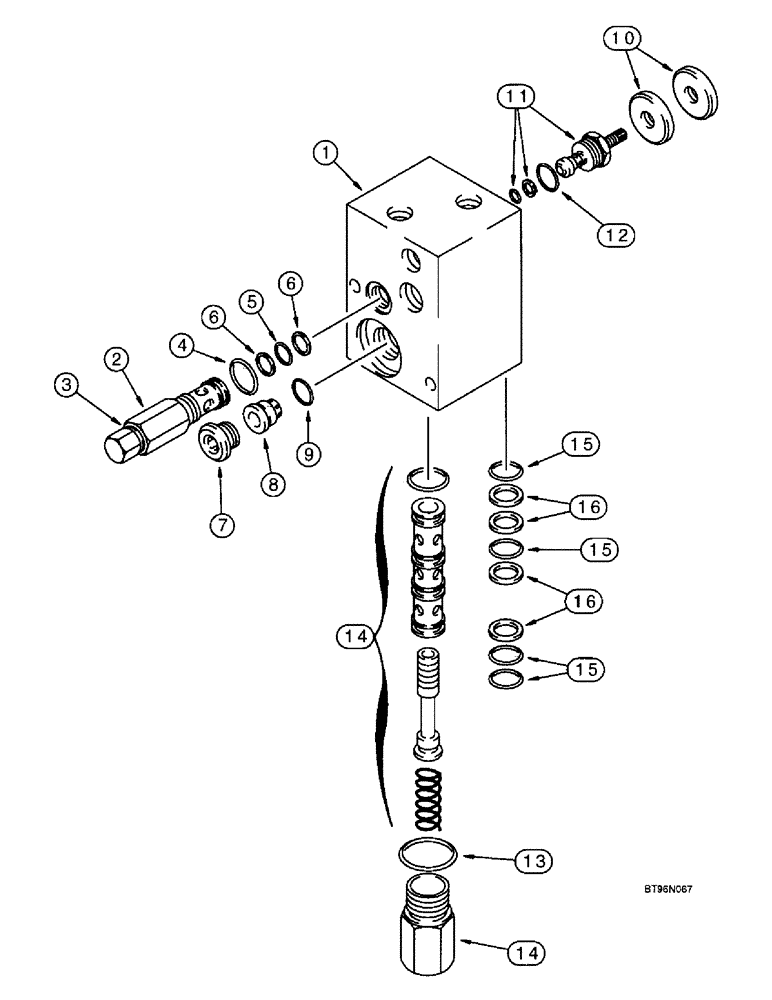

Запчасти Case IH 955 (8-50) - FLOW CONTROL VALVE - 115885A1 (08) - HYDRAULICS

115885A1

VALVE

ASSEMBLY - flow control

3шт.

1

NSS

NOT SOLD SEPARAT

BODY - flow control valve

1шт.

2

352938A1

CARTRIDGE

- relief valve, replaces 140267A1 when stock is exhausted

1шт.

If customer is complaining of lack of fan speed, supply the new cartridge

1шт.

140279A1

O-RING KIT

- repair, cartridge

1шт.

Part of flow control valve repair kit P/N 140273A1

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - cap

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - body, large

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

2шт.

7

NSS

NOT SOLD SEPARAT

PLUG - check valve

1шт.

8

140271A1

VALVE

- check

1шт.

9

140280A1

O-RING KIT

- check valve

1шт.

Part of flow control valve repair kit P/N 140273A1

1шт.

10

140278A1

KIT

- knob, flow control adjustment (set of 2)

1шт.

Part of flow control valve repair kit P/N 140273A1

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - flow control adjustment

1шт.

140276A1

KIT

- repair, O-ring, flow regulator and adjustment

1шт.

Part of flow control valve repair kit P/N 140273A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - flow control adjustment body

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - flow regulator valve body

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - flow regulator

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - flow regulator valve spool

4шт.

Part of flow control valve repair kit P/N 140273A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, valve spool

4шт.

Part of flow control valve repair kit P/N 140273A1

1шт.

140273A1

KIT

- repair, flow control valve, Includes: Refs. 9, 10, 15, 16 and P/N's 140279A1 and 140276A1

1шт.
