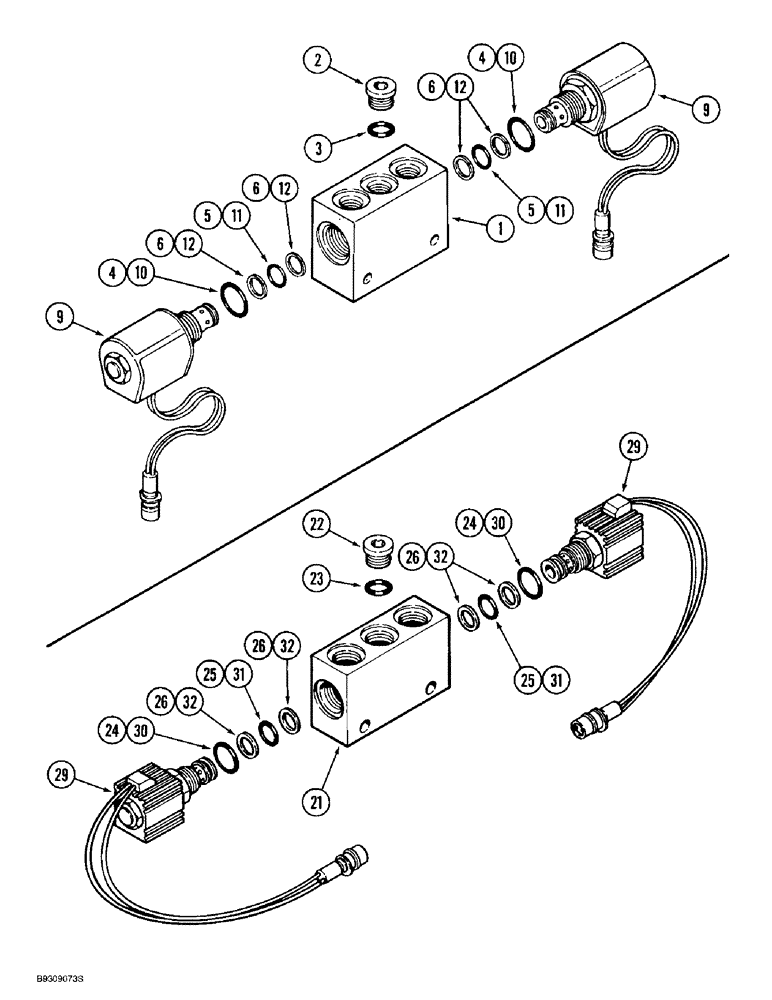

Запчасти Case IH 955 (8-42) - ROW MARKER VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
149988C92
VALVE
ASSEMBLY - control, row marker (Modular Controls) (alternative part is 1272632C91)
1шт.
1
145317C2
VALVE BODY
BODY - valve
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - 9/16-18 inch O-ring boss
1шт.
145316C1
REPAIR KIT
KIT - seal, repair, valve assembly
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
5
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
6
NSS
NOT SOLD SEPARAT
WASHER - backup
4шт.
9
149989C91
VALVE
- solenoid
2шт.
1272308C1
SEAL KIT
KIT - seal, repair, solenoid valve
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
1шт.
12
NSS
NOT SOLD SEPARAT
WASHER - backup
2шт.
1272632C91
VALVE
ASSEMBLY - control, row marker (Waterman) (alternative part) (no longer available, order 149988C92 control valve assembly)
1шт.
21
1272827C1
VALVE BODY
BODY - valve
1шт.
22
NSS
NOT SOLD SEPARAT
PLUG - valve body
1шт.
1272828C1
SEAL KIT
KIT - seal, repair, valve assembly (see note)
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
24
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
25
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve
2шт.
26
NSS
NOT SOLD SEPARAT
WASHER - backup
4шт.
29
1272830C91
SOLENOID VALVE
VALVE ASSEMBLY - solenoid, no longer available, order 149988C92 control valve assembly
2шт.
30
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve (Order 1272828C1)
1шт.
31
NSS
NOT SOLD SEPARAT
O-RING - solenoid valve (Order 1272828C1)
1шт.
32
NSS
NOT SOLD SEPARAT
WASHER - backup (Order 1272828C1)
2шт.
Выбрано товаров: 25
