Запчасти Case IH 955 (8-40) - WING FRAME LIFT HYDRAULIC CYLINDER, 8 ROW WIDE & 12 ROW NARROW- VERTICAL FOLD (08) - HYDRAULICS

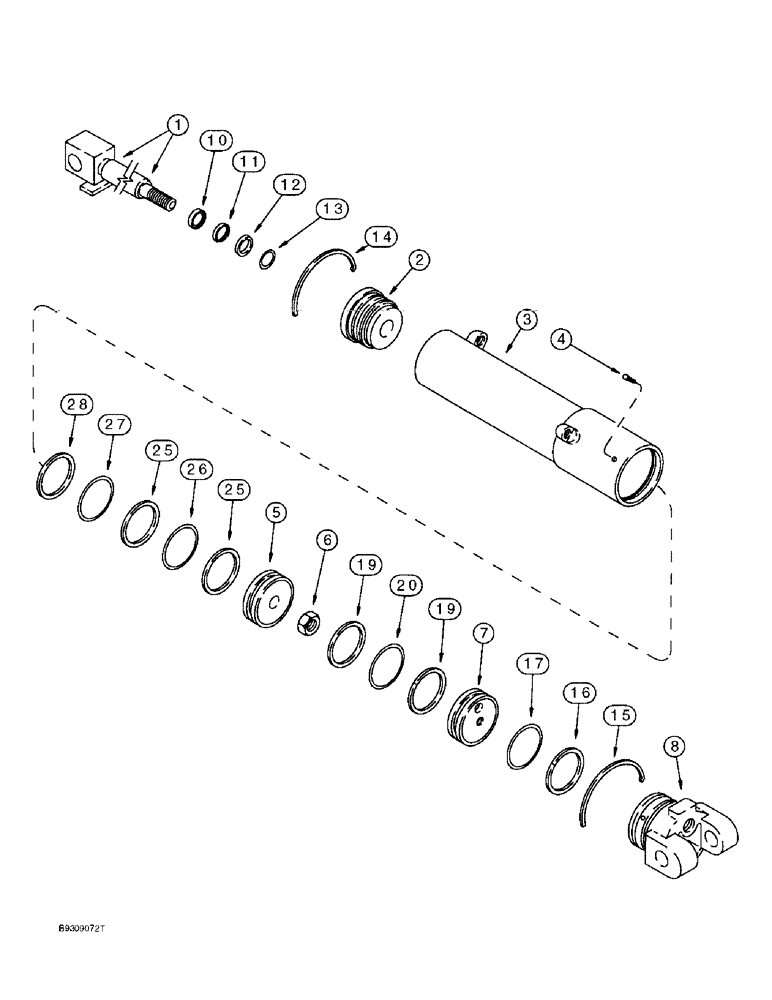

Схема запчастей Case IH 955 - (8-40) - WING FRAME LIFT HYDRAULIC CYLINDER, 8 ROW WIDE & 12 ROW NARROW- VERTICAL FOLD (08) - HYDRAULICS
20
11
7
1
2
19
5
15
27
19
25
28
16
13
26
17
8
14
3
4
6
12
10
25

Артикул

Название

Примечание

Количество

113978C93

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 305 mm (12 inch) stroke, wing frame lift

2шт.

1

113984C2

ROD

- piston

1шт.

2

62899C1

HEAD

- cylinder, front

1шт.

3

113981C1

SLEEVE

TUBE - cylinder

1шт.

4

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

5

547724R1

PISTON

- cylinder

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

7

113986C1

PISTON

- cylinder

1шт.

8

63908C2

HEAD

- cylinder, rear

1шт.

63498C91

SEAL PACKAGE

KIT - seal, repair

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - retaining

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1/8 inch

1шт.

14

NSS

NOT SOLD SEPARAT

WIRE - retaining, front head

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE - retaining, rear head

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 3-5/8 ID x 1/8 inch

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 3-1/2 ID x 3/16 inch

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

26

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 ID x 3/16 inch

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 1/8 inch

1шт.

28

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Выбрано товаров: 24
