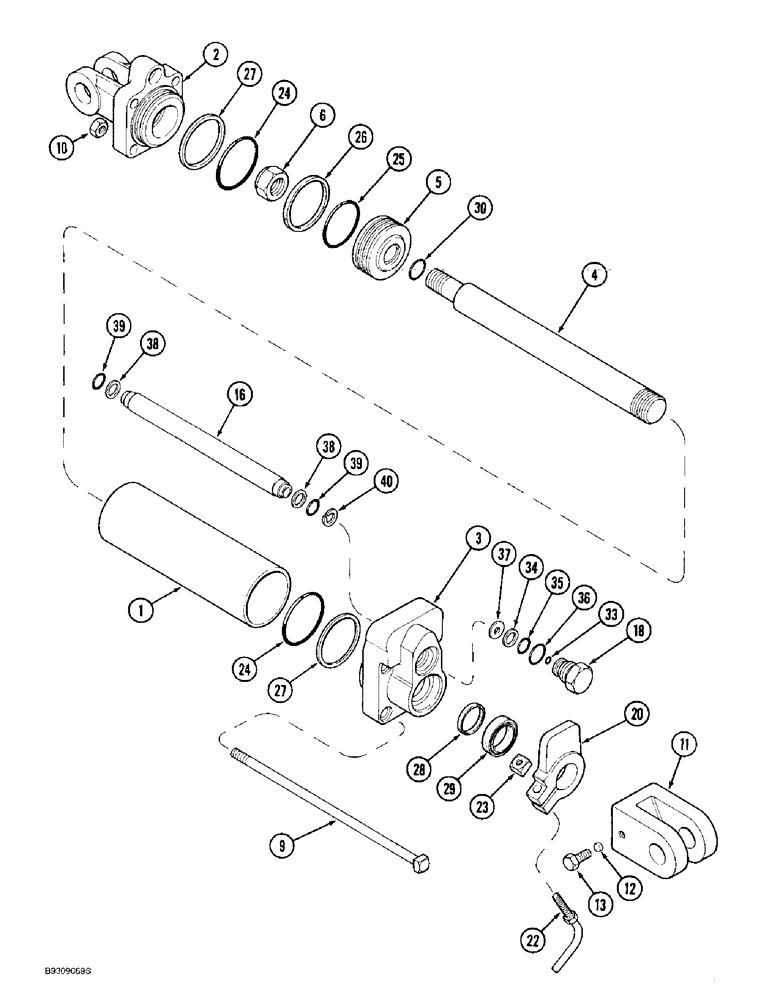

Запчасти Case IH 955 (8-36) - ASSIST WHEEL HYDRAULIC CYLINDER, 6 ROW, 8 ROW NARROW, & 8 ROW WIDE VERTICAL FOLD (08) - HYDRAULICS

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order cylinder assembly)

1шт.

2

145363C1

HEAD

- cylinder, rear

1шт.

3

145365C1

END

GLAND - cylinder, front

1шт.

4

145500C1

PISTON ROD

ROD - cylinder piston

1шт.

5

145221C3

PISTON

- cylinder

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

9

1260889C1

SQUARE BOLT,7/16" - 14 x 322.94mm

- tie, 7/16 inch NC, cylinder

4шт.

10

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

11

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

16

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- cylinder return

1шт.

18

1260968C91

VALVE

ASSEMBLY - stop limiting (Includes Ref. 33 through 37)

1шт.

20

224579C3

ARM

- cylinder depth stop

1шт.

22

1263435C91

ADJUSTMENT SCREW

- adjusting, L type

1шт.

23

1266705C1

SQUARE NUT

- square, 5/16 inch NC

1шт.

79975C2

SEAL KIT

KIT - seal replacement, cylinder

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 ID x 1/8 inch

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 ID x 3/32 inch

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

27

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

28

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

29

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

1272597C91

KIT

- seal replacement, valve and return tube

1шт.

33

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

34

224301C1

BACK-UP RING

RING - backup

1шт.

35

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

37

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

38

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

RING - backup

2шт.

39

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

40

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
