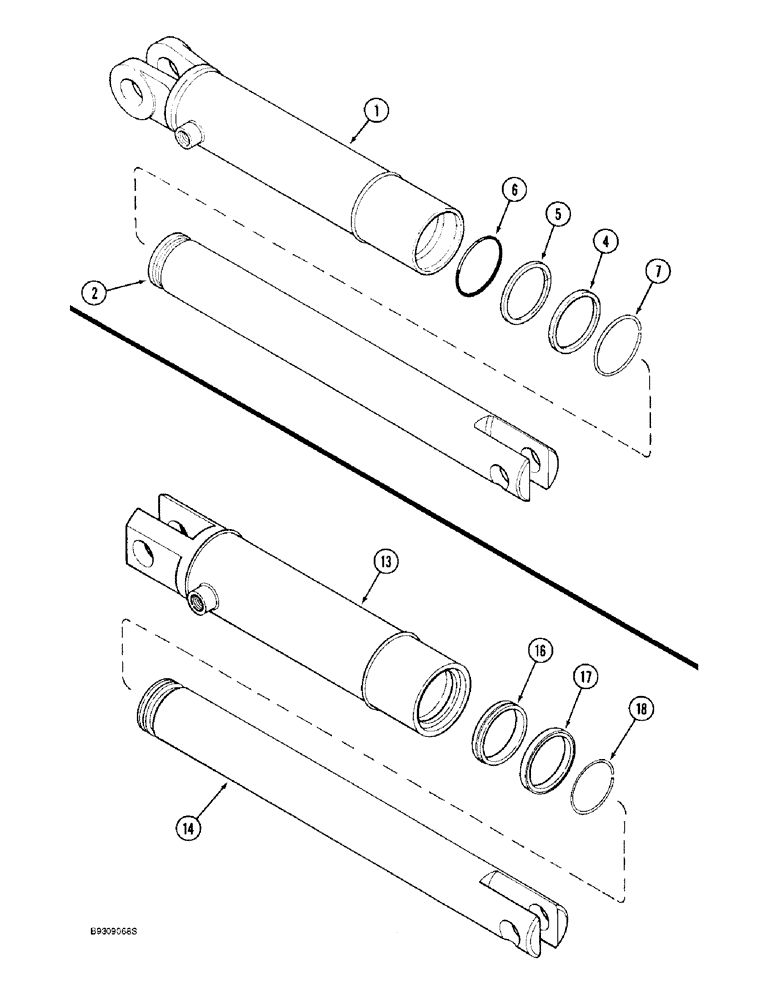

Запчасти Case IH 955 (8-34) - HYDRAULIC CYLINDERS - 145622C91 & 841038C91 (08) - HYDRAULICS

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, marker (Alternate part is 841038C91)

2шт.

1

145621C1

HYD TUBE

TUBE - cylinder

1шт.

2

149611C1

PISTON ROD

ROD - cylinder, 51 mm (2 inch) diameter

1шт.

145682C1

SEALING RING

KIT - seal

1шт.

4

59741C1

WIPER SEAL

WIPER - rod

1шт.

5

387399R2

RING

- backup

1шт.

6

238-6329

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

- 2 ID x 3/16 inch wide

1шт.

7

145628C1

RING

- retaining

1шт.

841038C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, marker (Cessna) (Alternate part)

2шт.

13

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 841038C91)

1шт.

14

843146C1

ROD

- cylinder, 51 mm (2 inch) diamter

1шт.

843147C1

SEAL KIT

KIT - seal

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

18

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.
