Запчасти Case IH 955 (8-21C) - ROW MARKER HYDRAULIC SYSTEM, 12 ROW WITH 22 INCH ROW SPACING, SUGAR BEET (08) - HYDRAULICS

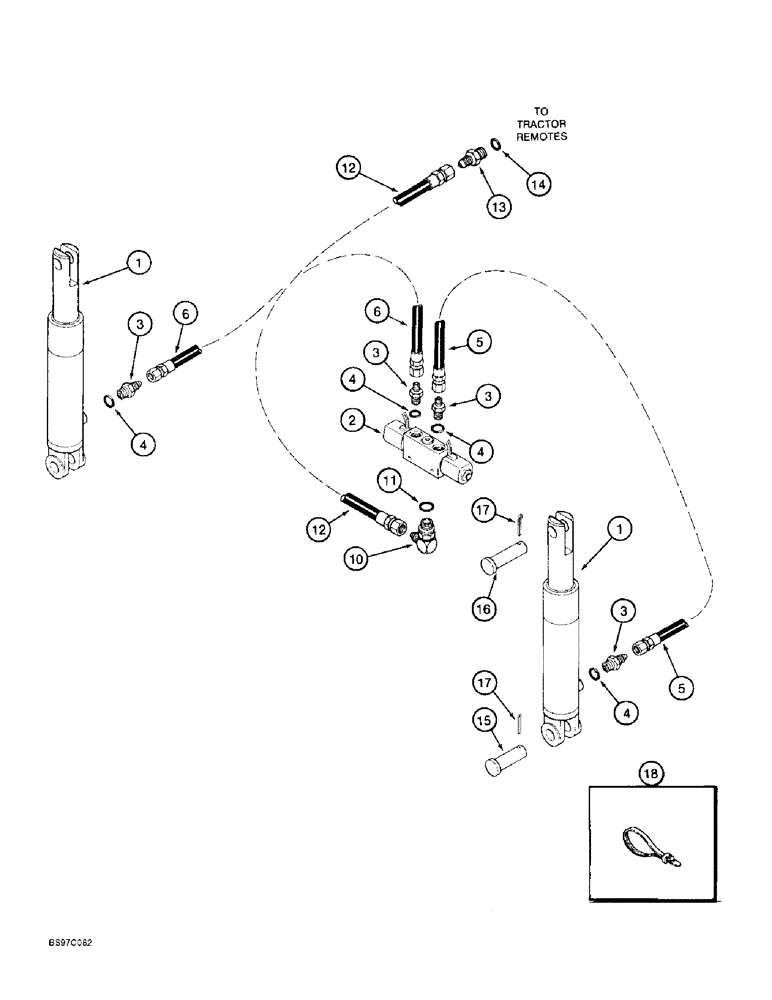

Схема запчастей Case IH 955 - (8-21C) - ROW MARKER HYDRAULIC SYSTEM, 12 ROW WITH 22 INCH ROW SPACING, SUGAR BEET (08) - HYDRAULICS
10
1
16
5
2
6
17
18
13
17
4
12
3
1
4
3
11
3
14
3
4
4
12
6
15
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, row marker, 12 row with 22 inch row spacing (See Pages 8-33 and 8-35)

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - row marker (See Figure 8-42 for correct valve)

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

4шт.

5

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

HOSE - 4572 mm (180 inch) long, valve to right-hand marker cylinder

1шт.

6

1261401C1

HOSE,6.40 mm ID x 5200.00 mm, SAE 100R1

valve to left-hand marker cylinder 6.40 mm ID x 5200.00 mm, SAE 100R1

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long, supply

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch, grade 2

2шт.

16

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

18

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
