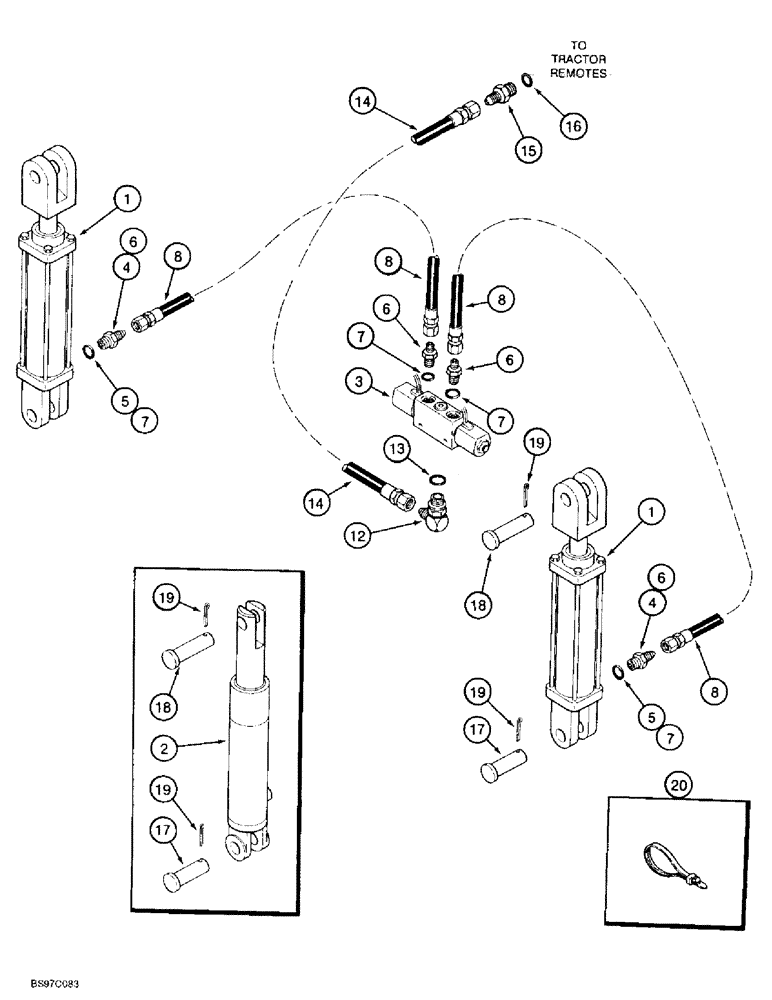

Запчасти Case IH 955 (8-21A) - ROW MARKER HYDRAULIC SYS, 6/11 ROW & 8/15 ROW SOLID ROW CROP 8 ROW W/22" ROW SPACING, SUGAR BEET (08) - HYDRAULICS

1

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, row marker, 6/11 row and 8 row with 22 inch row spacing (See Page 8-31)

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, row marker, 8/15 row (See Pages 8-33 and 8-35)

2шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - row marker (See Page 8-43 for correct valve)

1шт.

4

1263477C3

HYD CONNECTOR

ADAPTER - restrictor, 6/11 row and 8 row with 22 inch row spacing

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss (2) used with 6/11 row and 8 row with 22 inch row spacing - (4) used with 8/15 row

2-4шт.

8

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

HOSE - 3810 mm (150 inch) long, 6/11 row and 8 row with 22 inch row spacing

2шт.

8

139655C2

HYDRAULIC HOSE

HOSE - 3937 mm (155 inch) long, 8/15 row

2шт.

12

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long, supply

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch, grade 2

2шт.

18

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

20

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 6/11 row

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
