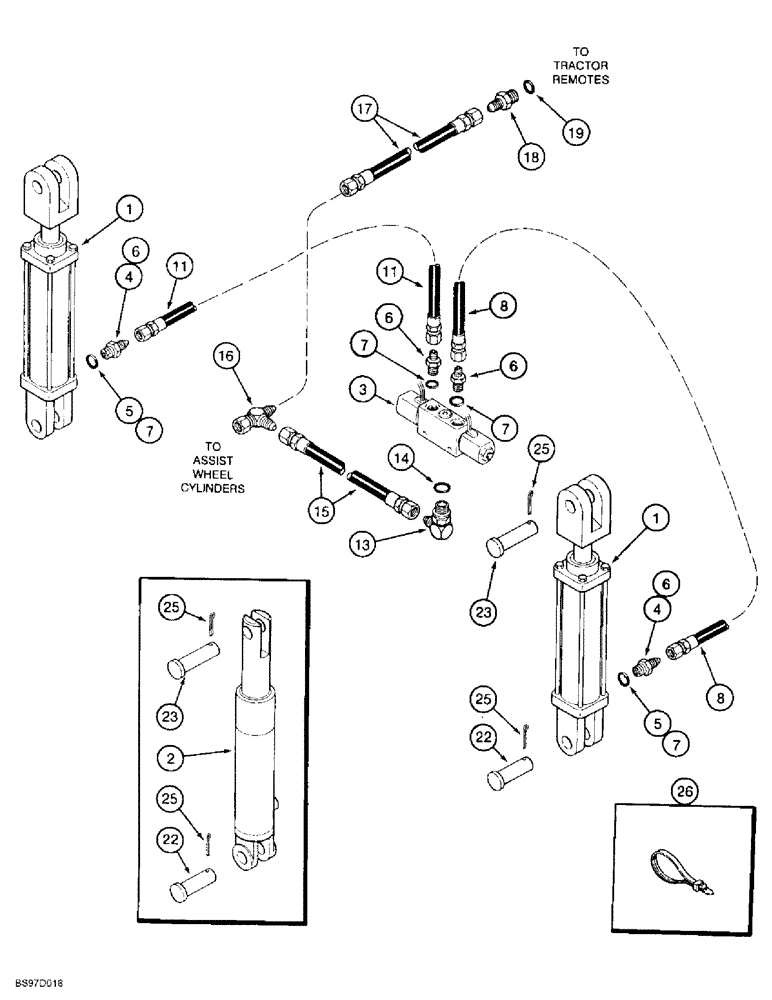

Запчасти Case IH 955 (8-20) - ROW MARKER HYDRAULIC SYSTEM, 8 ROW NARROW AND 6 ROW (08) - HYDRAULICS

1

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, row marker, 6 row narrow (See Page 8-31)

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, row marker, 6 row wide and 8 row narrow (See Pages 8-33 and 8-35)

2шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - row marker (See Page 8-43 for correct valve)

1шт.

4

1263477C3

HYD CONNECTOR

ADAPTER - restrictor, 6 row narrow

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss (2) used with 6 row narrow and (4) used with 6 row wide and 8 row narrow

2-4шт.

8

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE - 3175 mm (125 inch) long, 6 row narrow

1шт.

8

139655C2

HYDRAULIC HOSE

HOSE - 3937 mm (155 inch) long, 6 row wide and 8 row narrow

1шт.

11

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE - 2667 mm (105 inch) long, 6 row narrow

1шт.

11

139655C2

HYDRAULIC HOSE

HOSE - 3937 mm (155 inch) long, 6 row wide and 8 row narrow

1шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

90875C1

HYDRAULIC HOSE

HOSE - 737 mm (29 inch) long, tee to marker valve

1шт.

16

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

17

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long, Serial Range: supply,-tee

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch, grade 2

2шт.

23

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

26

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 6 row narrow

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
