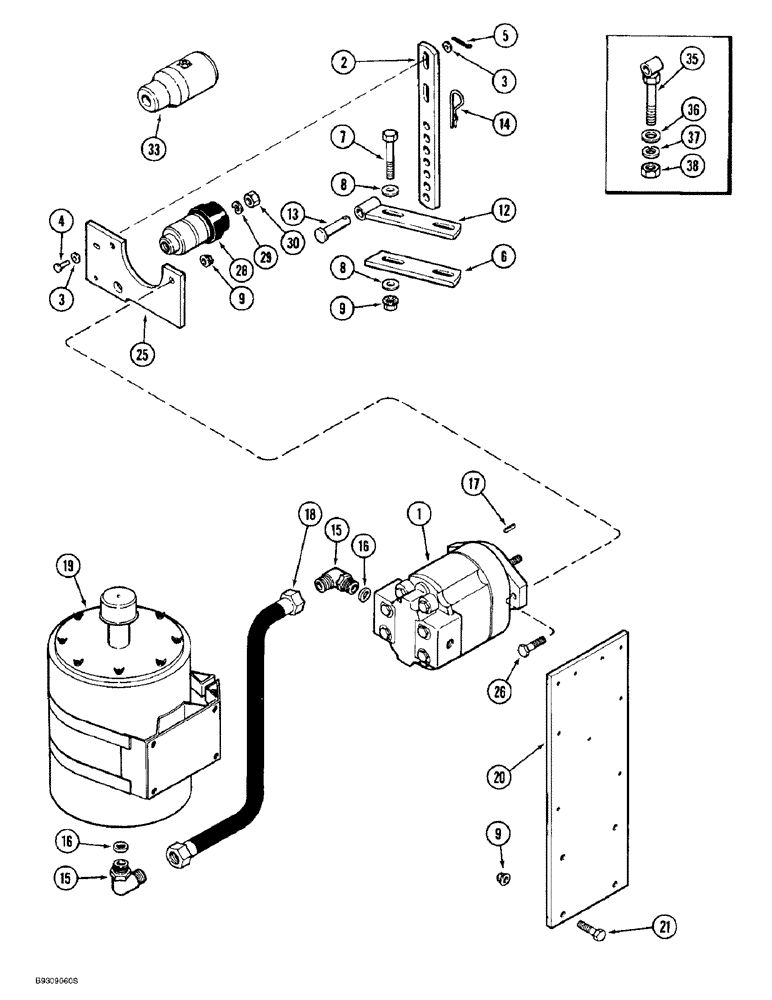

Запчасти Case IH 955 (8-18) - BLOWER PUMP HYDRAULIC SYSTEM, 12 ROW NARROW - VERTICAL FOLD, 6/11 ROW & 8/15 ROW SOLID ROW CROP (08) - HYDRAULICS

1

142482C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, new (See Page 8-53)

1шт.

2

56774C1

BRACKET

- adjusting

1шт.

3

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

4шт.

4

39-1720

HEADED PIN,7/16" x 1 1/4"

PIN - headed, 7/16 x 1-1/4 inch, grade 2

2шт.

5

432-1216

COTTER PIN,3/16" x 1"

2шт.

6

56776C1

BAR

STRAP - retaining

1шт.

7

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

12

1254128C1

STRAP

- retaining

1шт.

13

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

1шт.

14

1978738C1

HAIR PIN COTTER

3/16"

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

2шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

17

177192C1

KEY

- shaft, pump, order 575824R1 key and cut to 1-7/32 inch (31 mm) length

1шт.

18

58159C2

HOSE,31.75mm ID x 1371.6mm L

- Suction 1.25" ID x 54.00"

1шт.

19

156395C91

RESERVOIR

ASSEMBLY - hydraulic oil, 3 gallon (See Page 8-57)

1шт.

20

145103C3

PLATE

BRACKET - reservoir mounting

1шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3-4шт.

25

56773C2

PLATE

- pump mounting

1шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

28

1279354C91

COUPLING

COUPLER ASSEMBLY - pump, 1-3/8 inch spline, non-split body

1шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

30

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

33

1277793C91

ADAPTER

COUPLER ASSEMBLY - pump, 1-3/4 inch spline, non-split body

1шт.

35

1958312C1

ANCHOR

BOLT - special, 5/8 NC x 3-1/2 inch (Use instead of Ref. 6 and 12 as required)

1шт.

36

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

37

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

38

425-1010

NUT,5/8"-11, G5

1шт.
