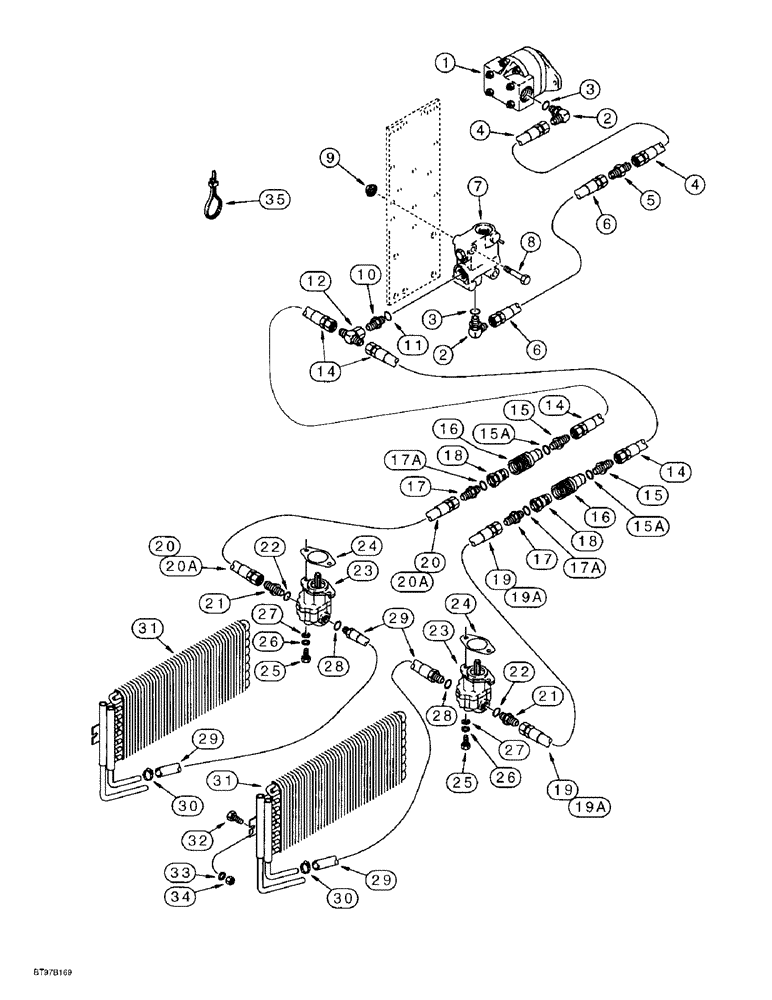

Запчасти Case IH 955 (8-17A) - BLOWER PUMP HYDRAULIC SYSTEM, PRESSURE LINES TO BLOWER MOTOR & COOLER (08) - HYDRAULICS

1

142482C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, new (See Page 8-53)

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

255002A1

HYDRAULIC HOSE,19.05 mm ID x 760.00 mm

HOSE - 760 mm (30 inch) long, pressure, at pump

1шт.

5

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

CONNECTOR - straight, large hex, 1-1/16-12 inch flare

1шт.

6

58940C1

HOSE,19.05mm ID x 1219.2mm L

- Pressure - at flow control valve 0.75" ID x 48.00"

1шт.

7

127743C91

VALVE

ASSEMBLY - flow control (See page 8-45)

1шт.

8

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9

231-5146

FLANGE NUT,3/8"-16

2шт.

10

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel branch x flare x flare

1шт.

14

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

HOSE - 4572 mm (180 inch) long, pressure, extension at cart frame

2шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

15a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

A177478

COUPLING, QUICK, FEM

COUPLING - self-sealing, female

2шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.

19

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Pressure, Right-Hand Blower Motor (6/11 Row) 12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

19a

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Pressure to Right-Hand Blower Motor (8/15 Row) 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

20

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

Pressure, Left-Hand Blower Motor (6/11 Row) 12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

20a

91240C1

HOSE,12.70 mm ID x 3050.00 mm, SAE 100R1

Pressure, Left-Hand Blower Motor (8/15 Row) 12.70 mm ID x 3050.00 mm, SAE 100R1

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See page 8-55)

2шт.

23

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH MOUNTED PLANTER, N.A. Only

2шт.

23

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

24

1985956C1

GASKET

- blower motor

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

26

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

27

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

29

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Return, Blower Motor To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

30

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

2шт.

31

1265677C1

OIL COOLER

COOLER - oil

2шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

33

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

425-106

NUT,3/8"-16, Cl 5

4шт.

35

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
