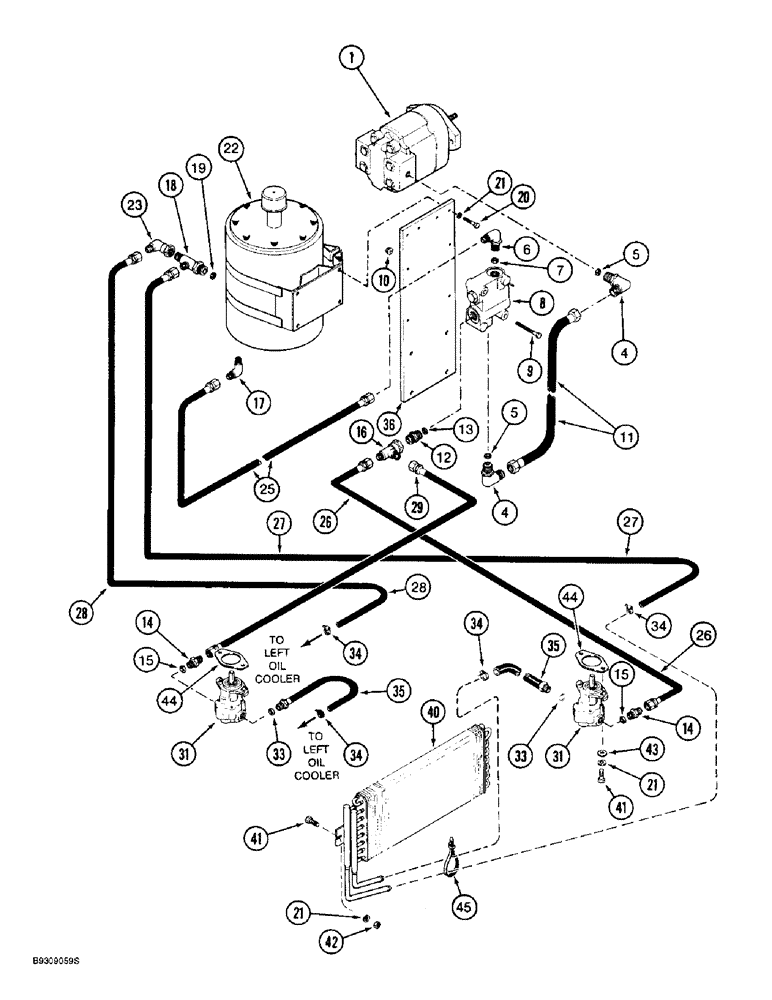

Запчасти Case IH 955 (8-16) - BLOWER PUMP HYDRAULIC SYSTEM, 6/11 ROW & 8/15 ROW SOLID ROW CROP PALNTERS BUILT PRIOR TO 1997 (08) - HYDRAULICS

1

142482C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, new (See Page 8-53)

1шт.

4

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

127743C91

VALVE

ASSEMBLY - flow control (See page 8-45)

1шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

58940C1

HOSE,19.05mm ID x 1219.2mm L

- Pressure 0.75" ID x 48.00"

1шт.

12

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

17

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

18

159484C91

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- special

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

21

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

156395C91

RESERVOIR

ASSEMBLY - hydraulic oil, 3 gallon (See page 8-57)

1шт.

23

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

25

90878C1

HYDRAULIC HOSE

HOSE - 990 mm (39 inch) long, return bypass

1шт.

26

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Pressure, Right-Hand Blower Motor (6/11 Row) 12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

26

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Pressure to Right-Hand Blower Motor (8/15 Row) 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

27

1254561C1

HYDRAULIC HOSE

HOSE - 2286 mm (90 inch) long, return, tee to right-hand cooler (6/11 row)

1шт.

27

1254112C1

HYDRAULIC HOSE,12.70 mm ID x 3000.00 mm

- Return, Tee to RH cooler (8/15 row) 12.70 mm ID x 3000.00 mm

1шт.

28

132237A1

HYDRAULIC HOSE

HOSE - 2667 mm (105 inch) long, return, tee to left-hand cooler (6/11 row)

1шт.

28

132238A1

HYDRAULIC HOSE

HOSE - 3404 mm (134 inch) long, return, tee to left-hand cooler (8/15 row)

1шт.

29

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

Pressure, Left-Hand Blower Motor (6/11 Row) 12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

29

91240C1

HOSE,12.70 mm ID x 3050.00 mm, SAE 100R1

Pressure, Left-Hand Blower Motor (8/15 Row) 12.70 mm ID x 3050.00 mm, SAE 100R1

1шт.

31

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See page 8-55)

2шт.

31

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH MOUNTED PLANTER, N.A. Only

2шт.

31

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

34

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

35

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Return, Blower Motor To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

36

145103C3

PLATE

BRACKET - reservoir mounting

1шт.

40

1265677C1

OIL COOLER

COOLER - oil

2шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

42

425-106

NUT,3/8"-16, Cl 5

4шт.

43

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

44

1985956C1

GASKET

- blower motor

1шт.

45

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
