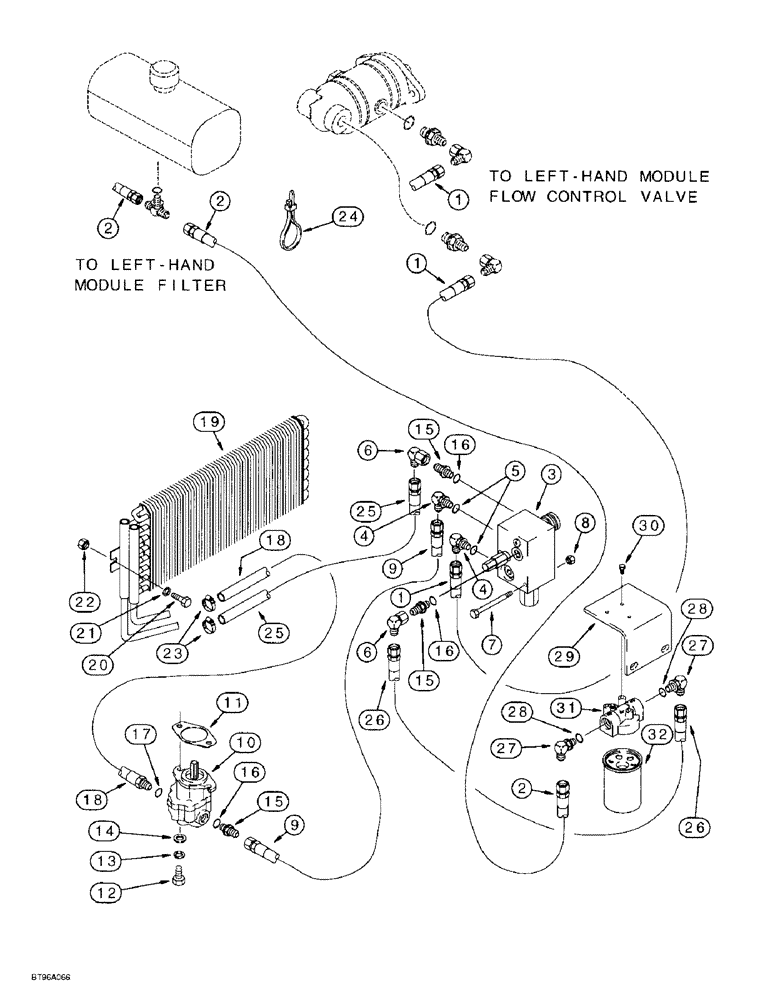

Запчасти Case IH 955 (8-12) - BLOWER PUMP HYDRAULIC SYSTEM, BLOWER MODULE & LINES, 540 RPM PTO 12 ROW NARROW- RIGID (08) - HYDRAULICS

1

1337376C1

HYDRAULIC HOSE

HOSE - 3556 mm (140 inch) long, pump to flow control valves

2шт.

2

1337361C1

HOSE ASSY.

HOSE - 4064 mm (160 inch) long, Serial Range: filters-reservoir

2шт.

3

115885A1

VALVE

ASSEMBLY - flow control (See page 8-51)

2шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

4шт.

7

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

9

90882C1

HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1

Flow Control Valve to Motor 12.70 mm ID x 1195.00 mm, SAE 100R1

2шт.

10

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See page 8-55)

2шт.

10

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH MOUNTED PLANTER, N.A. Only

2шт.

10

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

11

1985956C1

GASKET

- blower motor

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

13

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

6шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

18

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Motor To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

19

1265677C1

OIL COOLER

COOLER - oil

2шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

21

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

425-106

NUT,3/8"-16, Cl 5

4шт.

23

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

24

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, nylon

8шт.

25

127167A2

HOSE

- 1905 mm (75 inch) long, cooler to flow control valve

2шт.

26

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Flow Control Valve to Filter 12.70 mm ID x 585.00 mm, SAE 100R1

2шт.

27

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

4шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

29

127715A3

SUPPORT

BRACKET - mounting, oil filter assembly

2шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

31

113464C91

FILTER

ASSEMBLY - hydraulic oil

2шт.

32

113465C1

FILTER

- hydraulic oil

1шт.
