Запчасти Case IH 955 (8-08) - BLOWER PUMP HYDRAULIC SYSTEM, BLOWER MODULE & LINES, 540 & 1000 RPM PTO (08) - HYDRAULICS

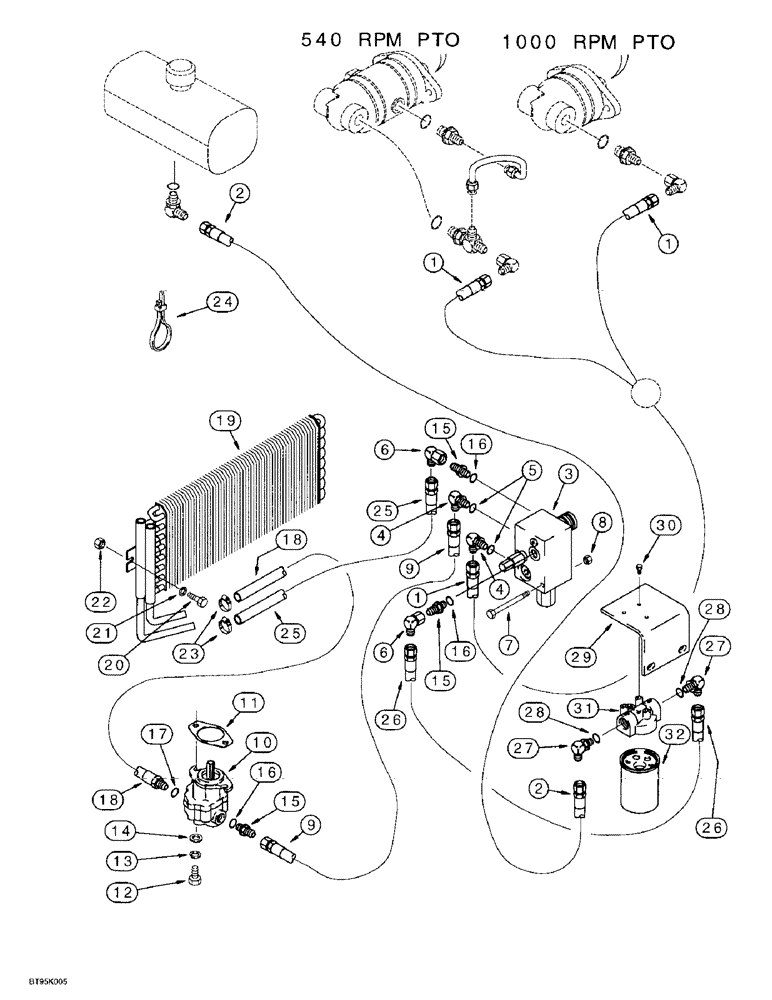

Схема запчастей Case IH 955 - (8-08) - BLOWER PUMP HYDRAULIC SYSTEM, BLOWER MODULE & LINES, 540 & 1000 RPM PTO (08) - HYDRAULICS
15
6
15
27
4
12
10
30
9
16
25
17
1
4
1
8
6
31
18
29
2
5
26
23
11
18
20
15
28
9
26
1
28
14
19
24
13
25
3
21
2
22
32
27
7
16
16

Артикул

Название

Примечание

Количество

1

195869C2

HYDRAULIC HOSE

HOSE - 1905 mm (75 inch) long, pump to flow control valve

1шт.

2

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

- Filter to reservoir 12.70 mm ID x 1650.00 mm

1шт.

3

115885A1

VALVE

ASSEMBLY - flow control (See page 8-51

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

2шт.

7

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

9

90882C1

HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1

Flow Control Valve to Motor 12.70 mm ID x 1195.00 mm, SAE 100R1

1шт.

10

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See page 8-55)

1шт.

10

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH MOUNTED PLANTER, N.A. Only

1шт.

10

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

11

1985956C1

GASKET

- blower motor

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

3шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Motor To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

1шт.

19

1265677C1

OIL COOLER

COOLER - oil

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

21

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

425-106

NUT,3/8"-16, Cl 5

2шт.

23

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

2шт.

24

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, nylon

4шт.

25

127167A2

HOSE

- 1905 mm (75 inch) long, cooler to flow control valve

1шт.

26

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Flow Control Valve to Filter 12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

27

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

2шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

29

127715A2

SUPPORT

BRACKET - mounting, oil filter assembly

1шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

31

113464C91

FILTER

ASSEMBLY - hydraulic oil

1шт.

32

113465C1

FILTER

- hydraulic oil

1шт.

Выбрано товаров: 34
