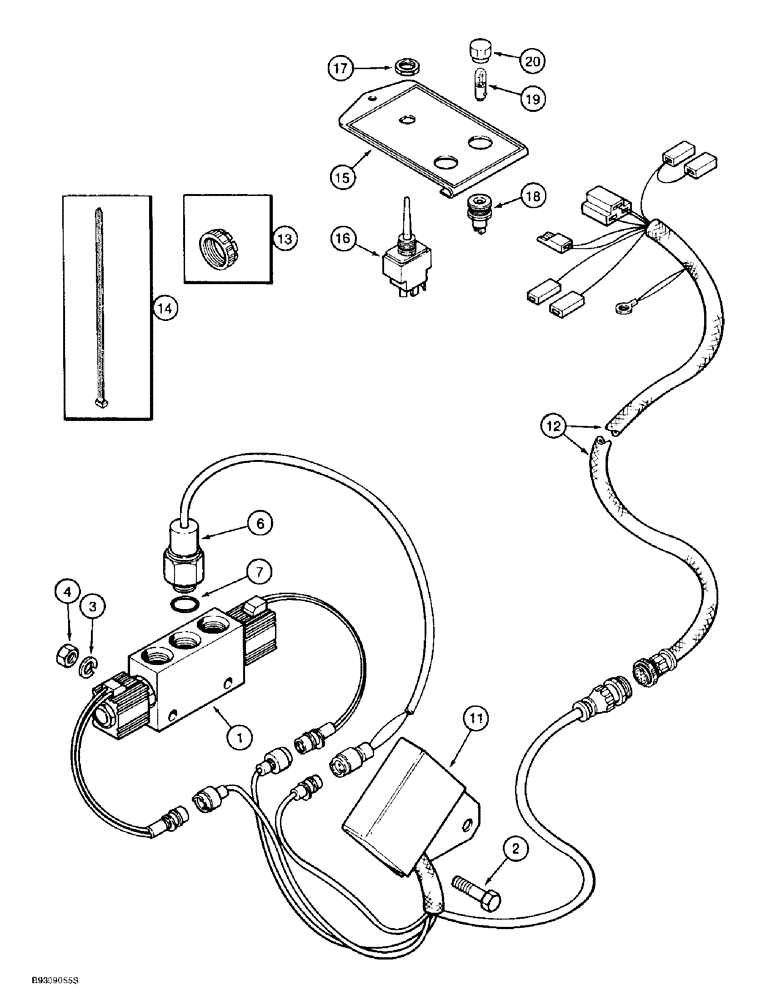

Запчасти Case IH 955 (4-20) - AUTOMATIC SELECTOR VALVE SYSTEM, 6 ROW NARROW, 6/11 ROW & 8/15 ROW SOLID ROW CROP (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker (See Page 8-43 for correct valve)

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

6

1547188C1

SWITCH

- pressure, 1900 psi, if used

1шт.

6

1547189C1

SWITCH

- pressure, 1500 psi, if used

1шт.

11

144911C3

CONTROL

- marker

1шт.

11

144911C4R

REMAN ELECT CONTROL

955 CASE IH MOUNTED PLANTER, marker (10/95-), Reman for New PN 144911C3

1шт.

11

144911C4C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

141405C2

HARNESS

- control, at marker switch

1шт.

13

149456C91

SET

KIT - connector ring, set of 10

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

15

149493C1

PLATE

ASSEMBLY - control box (Automatic markers)

1шт.

149483C1

PRODUCT GRAPHIC

DECAL - off, automatic, advance, not shown, see page 9F-13, item 7

1шт.

16

1250682C1

SWITCH

ASSEMBLY - marker control (Automatic markers)

1шт.

17

57603C1

NUT

- hex, special

1шт.

18

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - indicator

2шт.

19

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

20

71652C1

LENS

- lamp

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
