Запчасти Case IH 955 (9F-10) - DECALS (09) - CHASSIS/ATTACHMENTS

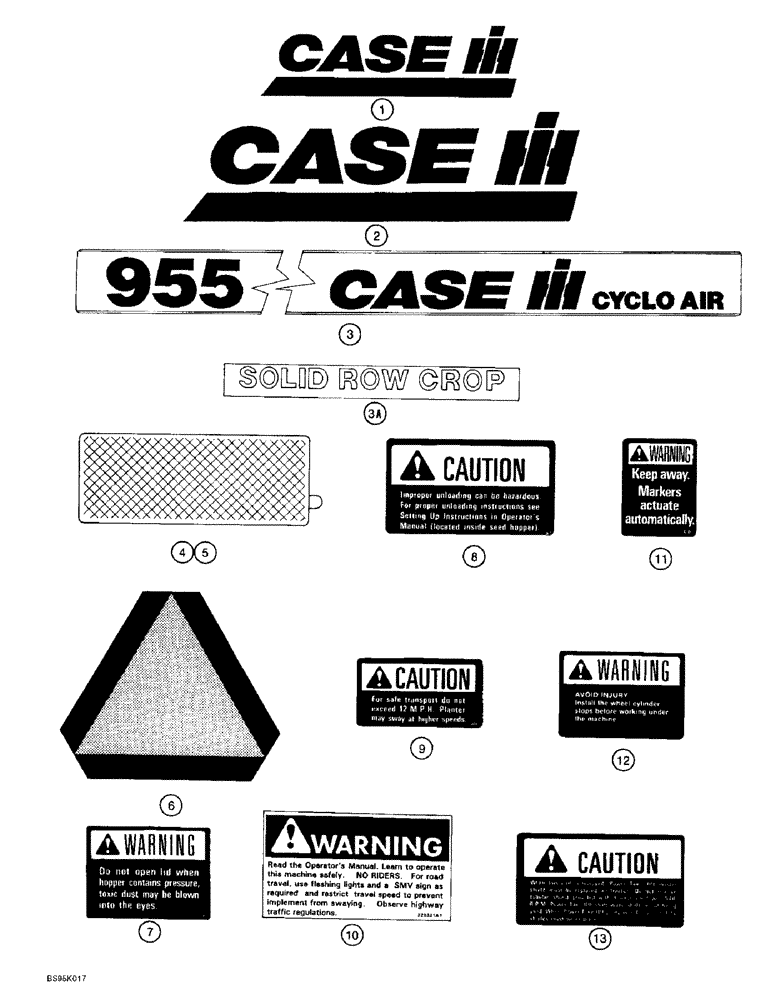

Схема запчастей Case IH 955 - (9F-10) - DECALS (09) - CHASSIS/ATTACHMENTS
3
5
3a
13
9
12
11
2
7
8
6
10
4
1

Артикул

Название

Примечание

Количество

1

192847A2

DECAL

- Case IH, 50 x 182 mm

1шт.

2

192848A2

DECAL

- Case IH, 70 x 255 mm

1шт.

3

196467A1

DECAL

- 955 Cyclo Air, model number

1шт.

3a

138937A1

DECAL

- Solid Row Crop, 6/11 and 8/15 row planters

2шт.

4

1284365C2

REFLECTOR

- amber

1шт.

5

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

6

321-4311

DECAL

- SMV emblem

1шт.

7

113483C3

DECAL

- Warning, do not open lid when hopper contains pressure

1-2шт.

8

100169C1

CAUTION DECAL

DECAL - Caution, improper unloading can be hazardous

1-2шт.

9

1264465C1

PRODUCT GRAPHIC

DECAL - Caution, for safe transport

2шт.

10

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual, English

1шт.

10

220322A1

CAUTION DECAL

DECAL - Warning, read the operator\qs manual, French, not shown

1шт.

11

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically

2-4шт.

12

149366C3

DECAL

- Warning, avoid injury, install the wheel cylinder stops

1-2шт.

13

145167C1

DECAL

- Caution, when this unit is removed

1шт.

Выбрано товаров: 15
