Запчасти Case IH 955 (9F-08) - CLOSED GRANULAR CHEMICAL HOPPER PARTS (09) - CHASSIS/ATTACHMENTS

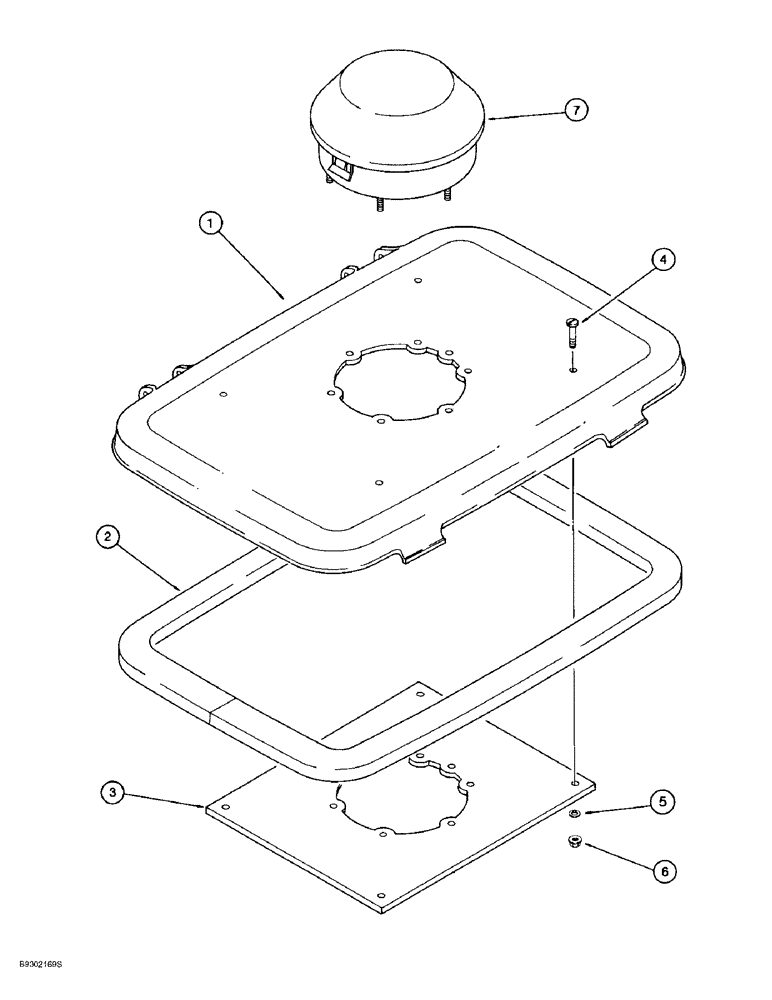

Схема запчастей Case IH 955 - (9F-08) - CLOSED GRANULAR CHEMICAL HOPPER PARTS (09) - CHASSIS/ATTACHMENTS
2
7
3
1
5
4
6

Артикул

Название

Примечание

Количество

1

106698A1

COVER

- granular chemical hopper

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - hopper, 60 inches long, cut from 149577C2 bulk seal, see below

1шт.

3

106699A1

PLATE

- hopper lid

1шт.

4

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine, pan head slotted, 1/4 NC x 5/8 inch

4шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

7

106696A1

VALVE

- closed chemical

1шт.

149577C2

SEALING STRIP

- bulk, 15240 mm (600 inch) long, order by 1 foot length

1шт.

Выбрано товаров: 8
