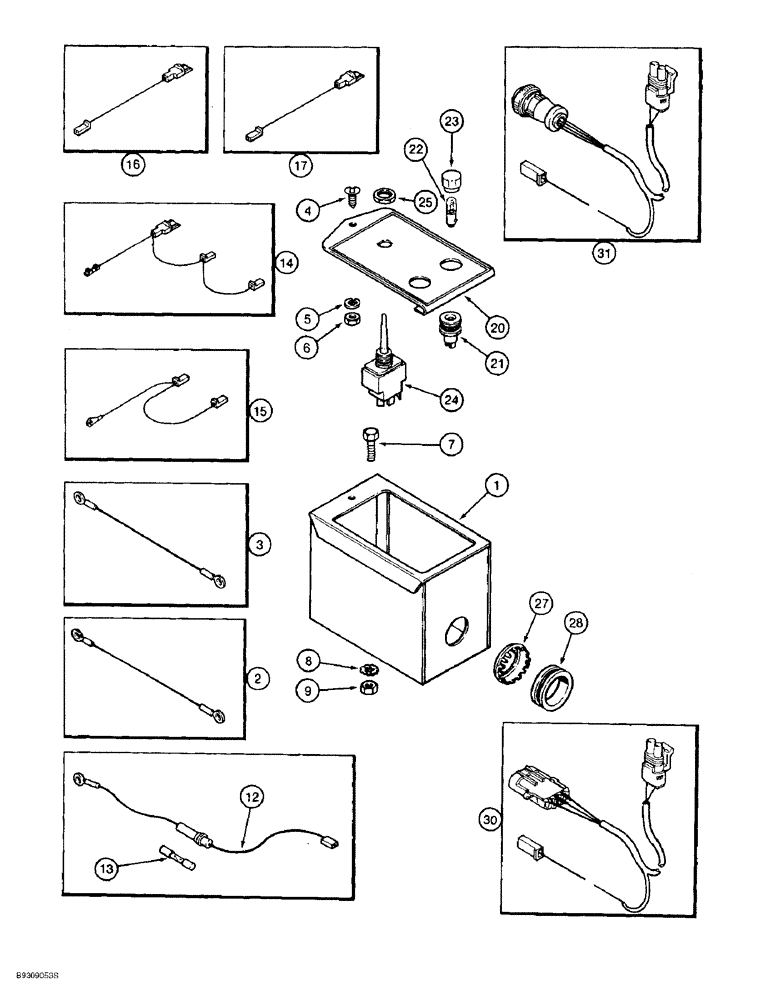

Запчасти Case IH 955 (4-16) - MARKER CONTROL BOX (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
116259C4
BOX
- control
1шт.
2
111322C1
CABLE
WIRE - black, 8 inch long, 12 gauge
1шт.
3
111323C1
CABLE
WIRE - green, 8 inch long, 16 gauge
1шт.
4
260-1446
SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"
SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch
1шт.
5
492-11010
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
7
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch
2шт.
8
493-11033
LOCK WASHER,Ext-Int Tooth, 5/16"
WASHER, LOCK, Ext-Int Tooth, 5/16"
2шт.
9
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
2шт.
12
149506C1
CABLE
WIRE - includes fuse
1шт.
14
A181760
CABLE
WIRE - connector, 2 wheel drive Case and CASE IH Tractor
1шт.
15
A181753
CABLE
WIRE - connector, 4 wheel drive Case and CASE IH Tractor
1шт.
16
A181761
CABLE
WIRE - marker control, 2030 mm (80 inch) long, 2 wheel drive Case and CASE IH Tractor
1шт.
17
A181758
CABLE
WIRE - marker control, 2540 mm (100 inch) long, 4 wheel drive Case and CASE IH Tractor
1шт.
20
147230C1
PLATE
ASSEMBLY - control box (Mechanical marker)
1шт.
147218C1
DECAL,Control Right Off Left
- right, off, left, not shown, see page 9F-13, item 8
1шт.
20
149493C1
PLATE
ASSEMBLY - control box (Automatic markers)
1шт.
149483C1
PRODUCT GRAPHIC
DECAL - off, automatic, advance, not shown, see page 9F-13, item 7
1шт.
21
109369C91
LIGHT ASSY.
LAMP ASSEMBLY - indicator, automatic markers
2шт.
22
200557H1
BULB,C2V, #1815, 14V
- lamp, No. 1815
1шт.
23
71652C1
LENS
- lamp
1шт.
24
121542C1
SWITCH
ASSEMBLY - marker (Mechanical marker)
1шт.
24
1250682C1
SWITCH
ASSEMBLY - marker control (Automatic markers)
1шт.
25
57603C1
NUT
- hex, special
1шт.
27
1264374C1
PLUG
- control box
1шт.
28
169851C1
GROMMET
- rubber
1шт.
30
1964768C1
HARNESS
- marker adapter (7100 and 7200 Series Tractors)
1шт.
31
1344888C2
HARNESS
- marker adapter (5100 and 5200 Series Tractors)
1шт.
Выбрано товаров: 29
